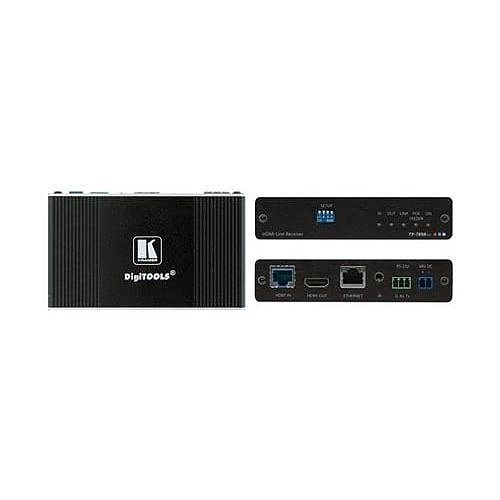

Kramer TP-789RXR Receiver with Ethernet, RS-232 and IR over Extended-Reach HDBaseT
TP-789RXR|KR-TP789RXR
Kramer TP-789RXR Receiver with Ethernet, RS-232 and IR over Extended-Reach HDBaseT
TP-789RXR|KR-TP789RXR
Kramer Electronics
Kramer TP-789RXR Receiver with Ethernet, RS-232 and IR over Extended-Reach HDBaseT
TP-789RXR | KR-TP789RXR
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
TP-789Rxr is a high-performance, extended-reach HDBaseT receiver for 4K60Hz (4:2:0) HDMI, Ethernet, RS-232 and IR signals and 2-way powering over twisted pair. It extends video signals to up to 100m (330ft) over Kramer copper cables at up to 4K at 60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions. This receiver either provides power over the copper extension cable to a POE (Power over Ethernet) acceptor device such as a PoE wall-plate, or accepts PoE through the extension cable from a PoE provider remote device, as auto-sensed by the receiver.
Main Features
- HDBaseT 1.0 receiver
- Bidirectional PoE (Power over Ethernet/HDBaseT)
- Up to 180m (590ft) at 1080p
- Up to 100m (330ft) at 4K
- Ethernet & control extension
- High Performance Standard Extender - Professional HDBaseT extender for providing extended-reach signals and powering over twisted-pair copper infrastructures. TP-789Rxr is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.,Long-distance AV signal extension for multi-room, large dividable auditoriums and lecture hall connectivity
- Bidirectional PoE (Power over Ethernet) - Auto-senses the extension line PoE status and either provides power to a remote POE acceptor such as a PoE wall-plate, or accepts power from a remote PoE provider such as a PoE matrix.,AV extension in conference rooms, boardrooms, control rooms, hotels and large church facilities
- HDMI Signal Extension - Supports deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display
General Information
Name: Kramer TP-789RXR Receiver with Ethernet, RS-232 and IR over Extended-Reach HDBaseT
Category: Kramer Electronics, Pro AV, Commercial Audio, Pro Receivers
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number KR-TP789RXR Brand Name Kramer Electronics Manufacturer Kramer Electronics Manufacturer Part Number 50-805060190 Product Model 50-805060190 Product Name 4K60 4:2:0 HDMI Bidirectional PoE Receiver with Ethernet, RS-232 & IR over Extended-Reach HDBaseT Product Type PoE Receiver
HDMI Yes
