Kramer UHDS-OUT2-F16 4K HDMI 2-Channel Scaler-Switcher Output Card
UHDS-OUT2-F16|KR-UHDSOUT2F
Kramer UHDS-OUT2-F16 4K HDMI 2-Channel Scaler-Switcher Output Card
UHDS-OUT2-F16|KR-UHDSOUT2F
Kramer Electronics
Kramer UHDS-OUT2-F16 4K HDMI 2-Channel Scaler-Switcher Output Card
UHDS-OUT2-F16 | KR-UHDSOUT2F
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

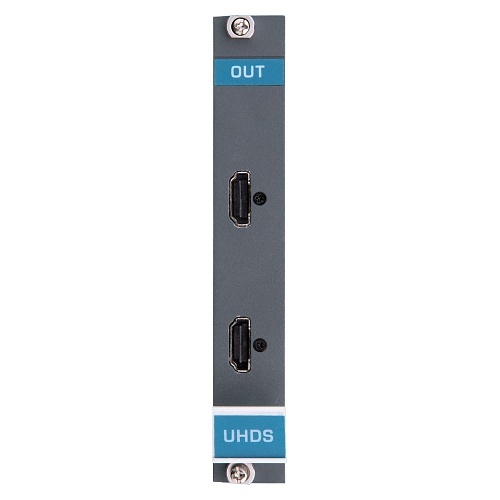

UHDS-OUT2-F16 Is a 2-channel HDMI scaler card for the VS-1616 Series Modular Multi-Format Digital Matrix Switchers. The card scales each output signal separately to a set resolution, aspect ratio and color depth according to the native requirements of the screen or a user setting. The scaling ensures ultra-fast switching by eliminating dependency on the display's scaling capabilities while keeping a constant output signal. In addition, it features immediate (between frame) cut switching between both ports on the same card for live-event switching / scaling.
Main Features
- Max. Data Rate 8.91 Gbps (2.97 Gbps per graphics channel)
- Max. Scaled output resolution of 4K at 30 Hz (4:4:4)
- Max. Input resolution of 4K at 30 Hz (4:4:4)
- HDMI, HDCP, EDID Support
- Immediate frame-to-frame switching support
General Information
Name: Kramer UHDS-OUT2-F16 4K HDMI 2-Channel Scaler-Switcher Output Card
Category: Kramer Electronics, Pro AV, Commercial Video Signal Distribution, Pro HDMI Switchers
UPC Code:
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number KR-UHDSOUT2F Brand Name Kramer Electronics Manufacturer Part Number 20-70011998
