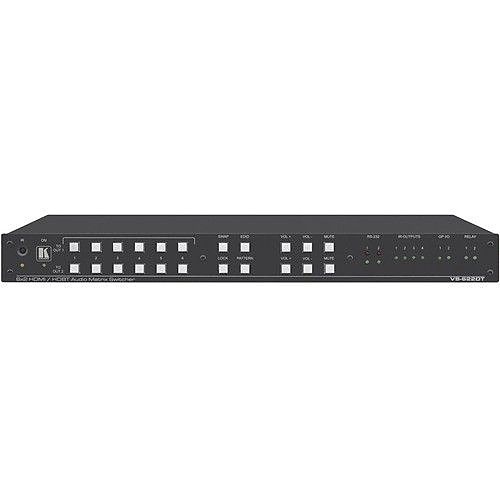

Image of KR-VS622DTC
Kramer Electronics

Kramer 20-80459030 VS-622DT All-In-One 4K at 60 Hz 4:2:0 HDMI HDBaseT Matrix Switcher

20-80459030|KR-VS622DTC
Kramer Electronics

Kramer 20-80459030 VS-622DT All-In-One 4K at 60 Hz 4:2:0 HDMI HDBaseT Matrix Switcher

20-80459030|KR-VS622DTC

Sign In for Dealer Pricing

Become an ADI Customer
Image of KR-VS622DTC
Kramer Electronics

Kramer 20-80459030 VS-622DT All-In-One 4K at 60 Hz 4:2:0 HDMI HDBaseT Matrix Switcher

20-80459030 | KR-VS622DTC

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

VS-622DT Is an all-in-one 4K at 60 Hz (4:2:0) presentation system with 6x2 HDMI/HDBaseT matrix switching, control gateway, PoE, power amplifier and Maestro room automation. The unit reclocks and equalizes the signals and can route any input to the HDMI or the HDBaseT output or to both outputs simultaneously. It supports resolutions up to 4K at 60 Hz (4:2:0) and WUXGA. VS-622DT Is also a control gateway that can send control signals over the Ethernet or HDBT LINE with control ports that include: RS-232, four IR, two GPI / O, and two relays to control a wide variety of AV devices. The unit provides power to PoE compatible devices.

Main Features

  • Provides Power (PoE) on All HDBaseT Ports to Compatible Devices
  • HDCP Compliant
  • EDID Capture copies and stores the EDID from a display device
  • Advanced Auto AV Switching Option; Independent (breakaway) audio routing of embedded HDMI content to two balanced audio ports
  • True Video Clock Detection
  • Non-Volatile EDID Storage
  • Kramer reKlocking and Equalization Technology that rebuilds the digital signal to travel longer distances
  • Lock Button prevents unwanted tampering with the front panel
  • Internal Pattern Generator
  • Static or Dynamic DHCP IP Addressing

General Information

Name: Kramer 20-80459030 VS-622DT All-In-One 4K at 60 Hz 4:2:0 HDMI HDBaseT Matrix Switcher
Category: Kramer Electronics, Residential AV, Residential Video Signal Distribution, HDMI Matrix Switches
UPC Code:
Country of Origin: . Country of origin is subject to change.
