Ubiquiti UVC-AI-THETA-HUB Remote Processing Unit for AI Theta Lens & Audio, PoE Powered, 0.96" Display, Wall/Ceiling Mountable
UVC-AI-THETA-HUB|KX-AITHETAHB
Ubiquiti UVC-AI-THETA-HUB Remote Processing Unit for AI Theta Lens & Audio, PoE Powered, 0.96" Display, Wall/Ceiling Mountable
UVC-AI-THETA-HUB|KX-AITHETAHB
Ubiquiti
Ubiquiti UVC-AI-THETA-HUB Remote Processing Unit for AI Theta Lens & Audio, PoE Powered, 0.96" Display, Wall/Ceiling Mountable
UVC-AI-THETA-HUB | KX-AITHETAHB
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

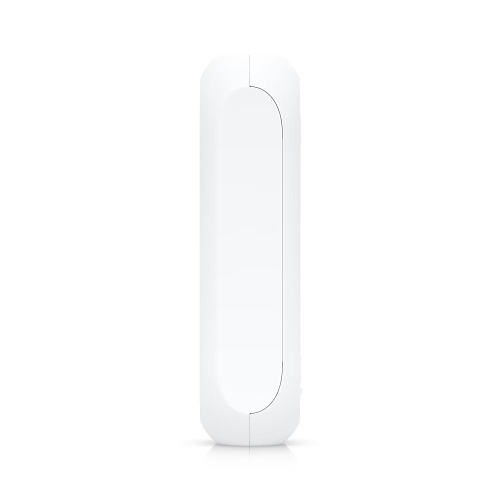

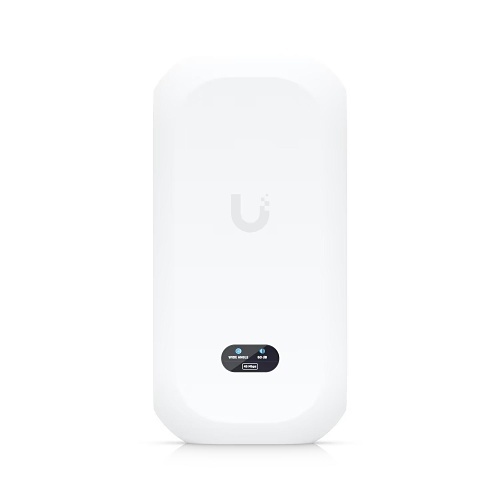

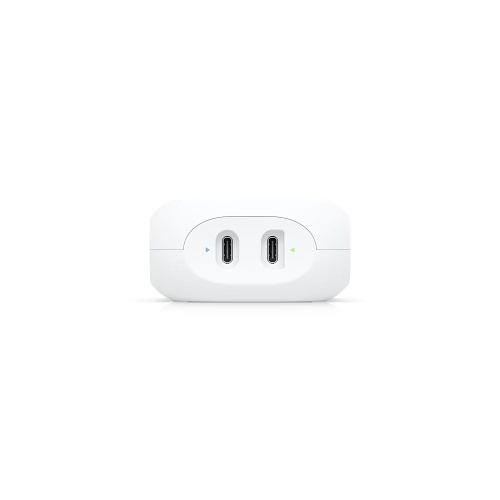

The Ubiquiti AI Theta Hub is a compact, PoE-powered remote processing unit designed to manage and unify AI Theta Lens and AI Theta Audio modules within a UniFi Protect deployment. Engineered for flexibility and performance, it features a quad-core Arm® Cortex®-A53 processor, H.264 video compression, and a 0.96" color display for real-time status monitoring. With support for wall and ceiling mounting, the AI Theta Hub is ideal for discreet installations in commercial or enterprise environments. It delivers 5V DC output per port to connected modules and operates reliably in temperatures ranging from -4 to 104° F (-20 to 40° C). Fully NDAA compliant and managed via UniFi Protect, it ensures secure, scalable, and intelligent video infrastructure.
Main Features
- Remote processing hub for AI Theta Lens and Audio modules
- Compact 5.5" x 2.8" x 1.5" (140 x 70 x 38 mm) aluminum enclosure
- PoE-powered with max consumption of 12.5W
- Quad-core Arm® Cortex®-A53 processor for efficient processing
- 0.96" color display for system status and diagnostics
- Supports H.264 video compression and advanced image settings
- Delivers 5V DC, 1A per port to connected devices
- Wall and ceiling mountable with included hardware
- Operating range: -4 to 104° F (-20 to 40° C), 10–90% humidity
- NDAA compliant and fully integrated with UniFi Protect
General Information
Name: Ubiquiti UVC-AI-THETA-HUB Remote Processing Unit for AI Theta Lens & Audio, PoE Powered, 0.96" Display, Wall/Ceiling Mountable
Category: Ubiquiti, Video Surveillance, Data Comm & Networking, Video Accessories, Patch Panels, Transmitters & Extenders, Blank Patch Panels
UPC Code: 810084692394
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number KX-AITHETAHB Brand Name Ubiquiti Manufacturer Part Number UVC-AI-THETA-HUB Product Line UniFi Product Name AI Theta Hub Product Series UVC AI Product Type Hub Weight 11.6oz
Power Consumption 12.5W
Depth 1.5" Form Factor Ceiling Mount, Wall Mount Height 5.5" Width 2.8"
Input Voltage 37-57V DC Power Source DC
Mount Type Ceiling Mount, Wall Mount
Environmental Certification CE, FCC Environmentally Friendly Yes
