Ubiquiti LTU-ROCKET-US 5 GHz PtMP LTU Rocket BaseStation Radio
LTU-ROCKET-US|KX-LTUROCKET
Ubiquiti LTU-ROCKET-US 5 GHz PtMP LTU Rocket BaseStation Radio
LTU-ROCKET-US|KX-LTUROCKET
Ubiquiti
Ubiquiti LTU-ROCKET-US 5 GHz PtMP LTU Rocket BaseStation Radio
LTU-ROCKET-US | KX-LTUROCKET
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

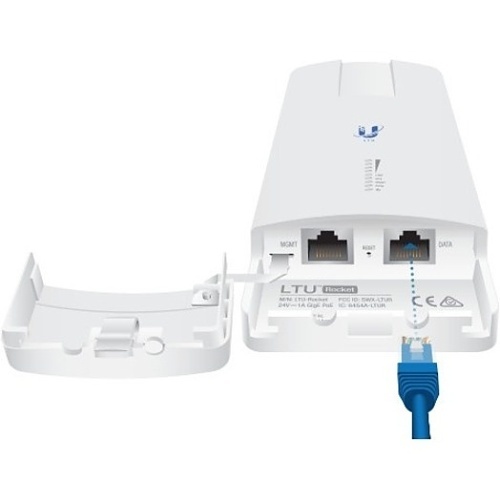

Enhance the performance of your wireless ISP by integrating the LTU Rocket 5 GHz LTU BaseStation Radio and PtMP Access Point from Ubiquiti Networks into your long-range 802.11 Wi-Fi installation. Designed specifically to work with the LTU Pro, LTU Lite, and LTU LR subscriber stations, this 5 GHz Point-to-MultiPoint (PtMP) access point incorporates Ubiquiti's proprietary LTU technology to cut through the noise in harsh RF environments to provide reliable wireless connections, processing over 2 million packets per second for up to 676 Mb/s throughput with a 62-mile range. Optimize connectivity by independently configuring the TX and RX channel frequencies to avoid local radio band interference. Attach separately purchased antenna cables to the RF connectors while using the third for the included GPS antenna to help improve device synchronization. Transmit data and power to the access point's Gigabit Ethernet port, located next to the RJ45 management port, over a single cable using the included PoE adapter.
Main Features
- 600+ Mbps Point-to-MultiPoint Performance
- Up to 64 Client Connections per AP
- Up to 2+ Mpps Performance
- 5 GHz (Single Band)
General Information
Name: Ubiquiti LTU-ROCKET-US 5 GHz PtMP LTU Rocket BaseStation Radio
Category: Ubiquiti, Data Comm & Networking, Hubs, Routers & Switches, Network Bridges
UPC Code: 817882029414
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number KX-LTUROCKET Brand Name Ubiquiti Manufacturer Ubiquiti Inc. Manufacturer Part Number LTU-ROCKET-US Product Line UISP Product Model LTU-ROCKET-US Product Name Ubiquiti Networks LTU Rocket 5 GHz LTU BaseStation Radio & PtMP Access Point Product Series LTU Product Type Radio Weight 16.58oz
MIMO Technology Yes Power Consumption 25W Wireless Transmission Speed 600 Mbps
Number of Network (RJ-45) Ports 1
Ethernet Technology Gigabit Ethernet
Depth 1.9" Form Factor Pole Mount Height 9.6" Width 3.2"
Frequency Band 5GHz
Limited Warranty 1-Year
Package Contents - 5 GHz PtMP LTU BaseStation Radio
- 24V, 1A Gigabit PoE Adapter
- Integrated Pole Mount
- GPS Pole Mount
