Image of KX-UKULTRAPA
Ubiquiti

Ubiquiti UACC-UK-ULTRA-PANEL-ANTENNA Panel Antenna for UK-Ultra, 90 Degree Directional, IPX6, 15 dBi Gain

UACC-UK-ULTRA-PANEL-ANTENNA|KX-UKULTRAPA
Ubiquiti

Ubiquiti UACC-UK-ULTRA-PANEL-ANTENNA Panel Antenna for UK-Ultra, 90 Degree Directional, IPX6, 15 dBi Gain

UACC-UK-ULTRA-PANEL-ANTENNA|KX-UKULTRAPA

Sign In for Dealer Pricing

Become an ADI Customer
Image of KX-UKULTRAPA
Ubiquiti

Ubiquiti UACC-UK-ULTRA-PANEL-ANTENNA Panel Antenna for UK-Ultra, 90 Degree Directional, IPX6, 15 dBi Gain

UACC-UK-ULTRA-PANEL-ANTENNA | KX-UKULTRAPA

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

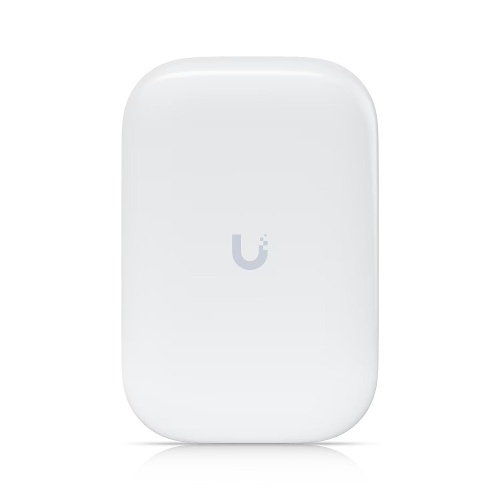

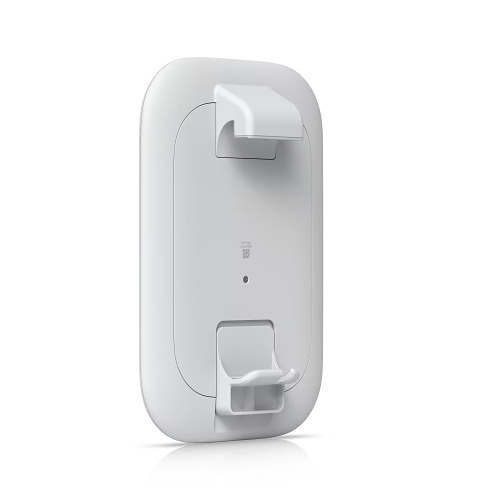

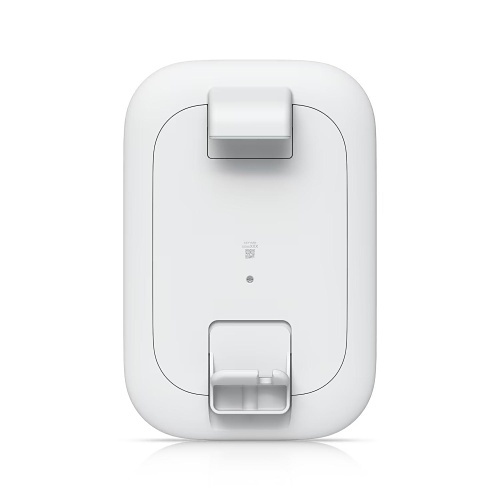

The UACC-UK-Ultra-Panel-Antenna is a sleek, clip-on directional antenna designed for the UK-Ultra, delivering focused 90° coverage with extended range. Built with UV-stabilized polycarbonate and aluminum, it withstands harsh outdoor conditions with IPX6 weatherproofing and wind survivability up to 16.7 lbf at 125 mph (75 N at 200 km/h). With high gain performance of 10 dBi at 2.4 GHz and 15 dBi at 5 GHz, it enhances signal strength and reliability in targeted deployments. Its compact 8.1" x 5.4" x 1.7" (207 x 138 x 43 mm) form and 1 lb (450 g) weight make it ideal for pole-mounted installations from 1" to 2" in diameter.

Main Features

  • 90° directional antenna for focused coverage
  • Compatible with UK-Ultra Swiss Army Knife
  • High gain: 10 dBi (2.4 GHz), 15 dBi (5 GHz)
  • Compact 8.1" x 5.4" x 1.7" (207 x 138 x 43 mm) size
  • Lightweight at 1 lb (450 g) for easy mounting
  • Mounts on 1" to 2" pipe outer diameter
  • IPX6-rated for weatherproof outdoor use
  • Wind survivability up to 16.7 lbf at 125 mph (75 N at 200 km/h)
  • Durable UV-stabilized polycarbonate and aluminum build
  • NDAA compliant for secure deployments

General Information

Name: Ubiquiti UACC-UK-ULTRA-PANEL-ANTENNA Panel Antenna for UK-Ultra, 90 Degree Directional, IPX6, 15 dBi Gain
Category: Ubiquiti, Data Comm & Networking, Wireless Access Points
UPC Code: 810084694107
Country of Origin: VN. Country of origin is subject to change.

Specifications
