Ubiquiti USW-AGGREGATION 8-Port Aggregation Layer 2 Switch
USW-AGGREGATION|KX-USWAGG
Ubiquiti USW-AGGREGATION 8-Port Aggregation Layer 2 Switch
USW-AGGREGATION|KX-USWAGG
Ubiquiti
Ubiquiti USW-AGGREGATION 8-Port Aggregation Layer 2 Switch
USW-AGGREGATION | KX-USWAGG
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

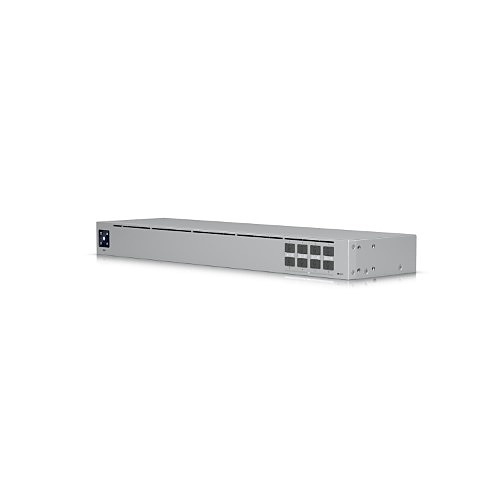

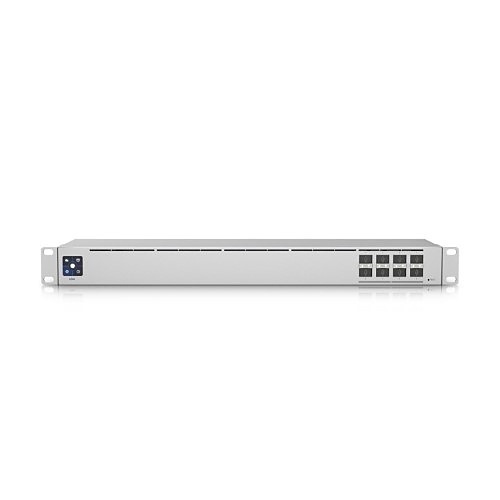

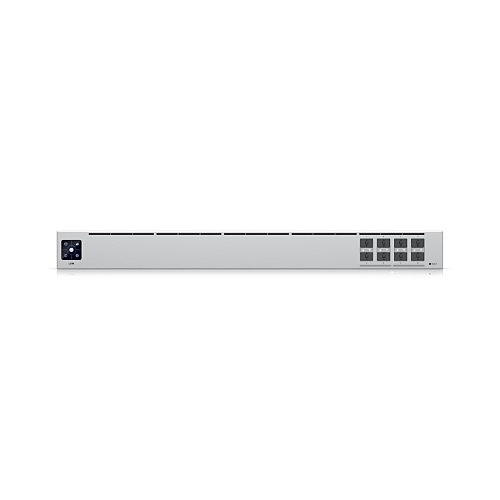

Enhance the speed, capacity, and availability of your network with the UniFi 8-Port 10G SFP+ Managed Aggregation Switch from Ubiquiti Networks. This compact managed Layer 2 switch offers eight 10G SFP+ ports and supports high-bandwidth links, making it ideal for aggregation switching to any UniFi device that deploys various interconnect topologies. The Aggregation Switch has a 160 Gb/s switching capacity with a 119.04 Mpps forwarding rate, features steel construction with a fanless design, and can be rack mounted using the included kit. Its front panel includes a 1.3" touchscreen with augmented reality switch management through the supported app for fast and easy port identification. Use the UniFi Network Controller platform to configure, manage, and monitor your network devices.
Main Features
- Effectively increases available bandwidth on your network
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Rack-mountable form factor for added reliability and dependability
- Management capability provides control over setup and configuration of your network
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Optical Fiber media support for efficient and reliable connectivity
General Information
Name: Ubiquiti USW-AGGREGATION 8-Port Aggregation Layer 2 Switch
Category: Ubiquiti, Data Comm & Networking, Hubs, Routers & Switches, Network Switches
UPC Code: 810010074157
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number KX-USWAGG Brand Name Ubiquiti Manufacturer Ubiquiti Inc. Manufacturer Part Number USW-AGGREGATION Product Line UniFi Product Model USW-AGGREGATION Product Name Ubiquiti Networks UniFi 8-Port 10G SFP+ Managed Aggregation Switch Product Series USW Product Type Network Switch Weight 6lb
Media Type Supported Optical Fiber Power Consumption 30W
Expansion Slot Type SFP+ Number of SFP+ Slots 8 Number of Total Expansion Slots 8
Modular Yes Network (RJ-45) Yes Total Number of Network Ports 8
Manageable Yes
Network Technology 10GBase-X
Ethernet Technology 10 Gigabit Ethernet Layer Supported 2
Compatible Rack Unit 1U Depth 4.7" Height 1.7" Material SGCC Steel Width 17.4"
Frequency 50 Hz|60 Hz Input Voltage 100-240V AC Power Source AC, DC
Limited Warranty 1-Year
Features 119.04 Mpps Forwarding Rate, 160 Gb/s Switching Capacity, Fanless, silent cooling
