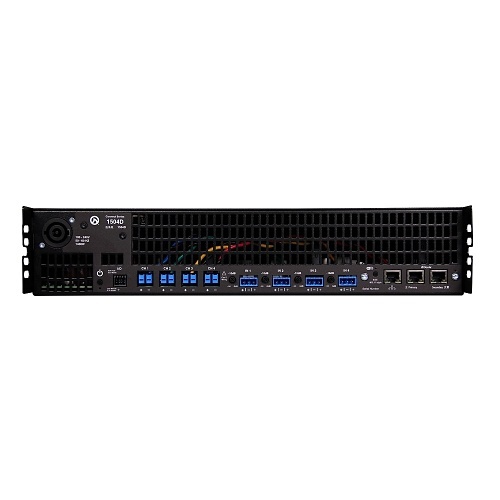

LEA Professional CS1504 High-Power IoT-Enabled Smart Amplifier, 1500W per Channel
CS1504|LD-CNNCT1504
LEA Professional CS1504 High-Power IoT-Enabled Smart Amplifier, 1500W per Channel
CS1504|LD-CNNCT1504
LEA Professional
LEA Professional CS1504 High-Power IoT-Enabled Smart Amplifier, 1500W per Channel
CS1504 | LD-CNNCT1504
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Introducing the CONNECT 1504 high-power IoT-enabled smart amp. This four-channel model drives 1,500W per channel (into 2, 4, and 8 Ohms as well as 70Vrms and 100Vrms). With three different methods of network connection, users can connect using the amplifier's built-in Wi-Fi Access Point, connecting to an existing Wi-Fi network, or using a Local Area Network Ethernet connection.
Main Features
- 3-Ways to connect
- Web browser-based UI
- Cloud control
- Direct Low-Z and Hi-Z
- Smart power bridge
- Universal switch-mode power
- Analog balanced inputs
- 96kHz Analog devices DSP
- External I/O port
- Highly efficient Class-D output stage
General Information
Name: LEA Professional CS1504 High-Power IoT-Enabled Smart Amplifier, 1500W per Channel
Category: LEA Professional, Pro AV, Commercial Audio, Pro Amplifiers
UPC Code: 850011348789
Country of Origin: CR. Country of origin is subject to change.
Specifications
ADI Part Number LD-CNNCT1504 Brand Name LEA Professional Manufacturer Part Number CS1504
Audio Channels 4 Impedance 8 ohms
Maximum Frequency Response 20 kHz Minimum Frequency Response 20 Hz RMS Output Power 1500W
Height 2U Width 19"
Input Voltage 100V AC, 240V AC
Length 17.88"
Environmental Certification RoHS
