Image of LD-CNNCT168
LEA Professional

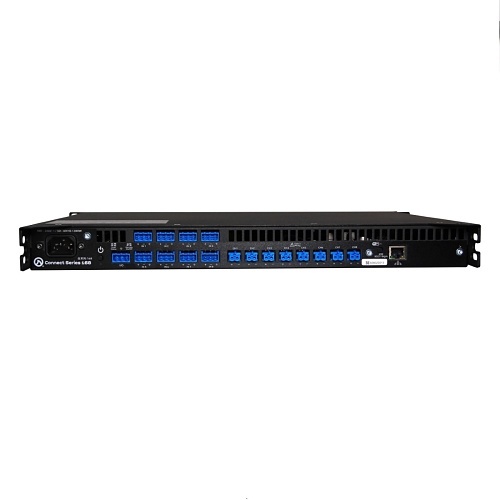

LEA Professional CONNECT 168 19" 8-Channel Amplifier, 160W per Channel

CONNECT 168|LD-CNNCT168
LEA Professional

LEA Professional CONNECT 168 19" 8-Channel Amplifier, 160W per Channel

CONNECT 168|LD-CNNCT168

Sign In for Dealer Pricing

Become an ADI Customer
Image of LD-CNNCT168
LEA Professional

LEA Professional CONNECT 168 19" 8-Channel Amplifier, 160W per Channel

CONNECT 168 | LD-CNNCT168

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The Connect Series 168 is an 8-channel amplifier with 160 watts per channel. As part of the Network Connect Series, the world’s first Internet of Things- (IoT) enabled professional-grade amplifiers, it is perfectly suited for small to medium-scale installations. The 168 features direct HiZ (70V or 100V) or LoZ selectable by channel. With three ways to connect, you can engage the built-in Wi-Fi access point, connect to the venue’s Wi-Fi, or use the FAST Ethernet to connect to any local area network via Cat5 or Cat6 cable.

Main Features

  • WebUIWorks on any device with no software to download, just three clicks from anything
  • Direct LoZ and HiZ (70V or 100V) selectable per channel
  • Proprietary Smart Power Bridge allows user to bridge a channel to achieve double the power of that channel without sacrificing an Alifier channel
  • 3 Ways to Connect, Built-in WiFi Access Point , Connects to existing WiFi network, Local Area Network Ethernet connection
  • 96kHz Analog Devices DSP with Input Routing, multiple 48dB/Oct crossover filters, 8 Parametric EQ filters, user configurable speaker limiters, and real-time load monitoring
  • Universal Switch Mode Power Supply with PFC. Operation from 100VAC - 240VAC +/-15%
  • Analog fully routable inputs.  Route any input to any output
  • External I/O Port for Remote On/Off and fault monitoring
  • Highly Efficient Class D Output Stage for low AC Current draw
  • AWS IoT Core lets integrators send their Connect Series systems into the Cloud, where they can access and control securely, from anywhere in the world, no VPN required

General Information

Name: LEA Professional CONNECT 168 19" 8-Channel Amplifier, 160W per Channel
Category: LEA Professional, Pro AV, Commercial Audio, Pro Amplifiers
UPC Code: 850011348475
Country of Origin: CR. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
User Manual
Installation Instructions
Manufacturer Brochure
