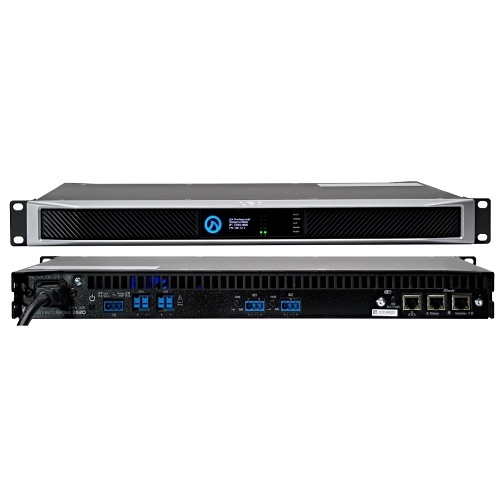

Image of LD-CNNCT352D
LEA Professional

LEA Professional CONNECT 352D Amplifier, Channel 350 watt at 4, 8, 70V and 100V per channel, with Dante

CONNECT 352D | LD-CNNCT352D

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The Connect Series 352D is a 2-channel amplifier with 350 watts per channel. As part of the Dante Connect Series, the world’s first Internet of Things- (IoT) enabled professional-grade amplifiers, it is perfectly suited for small to medium-scale installations. The 352D features direct HiZ (70V or 100V) or LoZ selectable by channel. With three ways to connect, you can engage the built-in Wi-Fi access point, connect to the venue’s Wi-Fi, or use the FAST Ethernet to connect to any local area network via Cat5 or Cat6 cable.

Main Features

  • Web Browser-based UI -Works on any device with no software to download
  • Direct LoZ and HiZ (70V or 100V) selectable per channel
  • Proprietary Smart Power Bridge allows user to bridge a channel to achieve double the power of that channel without sacrificing an Alifier channel
  • 3 Ways to Connect 1.) Built in WiFi Access Point 2.) Connects to existing WiFi network 3.) Local Area Network Ethernet connection
  • 96kHz Analog Devices DSP with Input Routing, multiple 48dB/Oct crossover filters, 8 Parametric EQ filters, user configurable speaker limiters, and real time load monitoring
  • Universal Switch Mode Power Supply with PFC. Operation from 100VAC - 240VAC +/-15%
  • Analog fully routable inputs
  • External I/O Port for Remote On/Off and fault monitoring
  • Highly Efficient Class D Output Stage for low AC Current draw
  • AWS IoT Core lets integrators send their Connect Series systems into the Cloud, where they can access and control securely, from anywhere in the world -- no VPN required

General Information

Name: LEA Professional CONNECT 352D Amplifier, Channel 350 watt at 4, 8, 70V and 100V per channel, with Dante
Category: LEA Professional, Pro AV, Commercial Audio, Pro Amplifiers
UPC Code: 850011348482
Country of Origin: CR. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
User Manual
Installation Instructions
Manufacturer Brochure
Additional Resources
