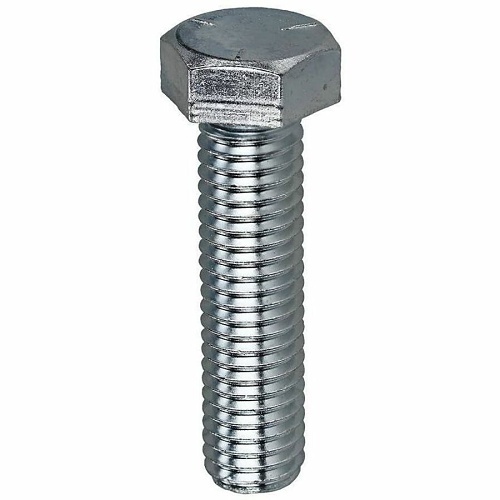

Dottie 5MB3834 Screw, 3/8"-16 3/4" Grade Hex Head Cap Screw
5MB3834 | LH-5MB3834
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Grade 5 Hex Cap Screws are made from carbon steel and are used in applications where medium strength is necessary, typically those where controlled clamp force and high loads are required. These screws can be screwed into internally tapped holes or used with a nut. Grade 5 Hex Cap Screws should always be used with a hardened washer under the turned component. SAE J429 covers the material and performance requirements of Grade 5 Hex Cap Screws and ASME B18.2.1 covers the dimensional requirements.
Main Features
- 3/8"-16 3/4" Hex Head Cap Screw
- Made from durable carbon steel
- Ideal for medium strength applications
- Suitable for high load requirements
- Compatible with internally tapped holes
- Use with nut or hardened washer
- Meets SAE J429 material standards
- Conforms to ASME B18.2.1 dimensions
- Meets ASME B18.2.1 dimensional requirements
General Information
Name: Dottie 5MB3834 Screw, 3/8"-16 3/4" Grade Hex Head Cap Screw
Category: Dottie, Tools & Hardware, Fasteners, Screws
UPC Code: 00781002180296
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LH-5MB3834 Brand Name Dottie Connecting Thread Type 2A Manufacturer L.H. Dottie Manufacturer Part Number 5MB3834 Package Length 5 Package Net Weight 4 Packaged Quantity 100 Product Model 5MB3834 Product Name 3/8''-16 x 3/4'' Grade 5 Hex Head Cap Screw Product Type Screw Sustainability Certificates Yes
Diameter 0.562-0.551" Fastener Type Cap Screw Finishing Zinc Plated Head Type Hex Length 0.75" Maximum Fractional Diameter 0.37" Threads Per Inch (TPI) 16
Certifications & Standards Yes Environmental Certification California Proposition 65, RoHS Environmentally Friendly Yes
