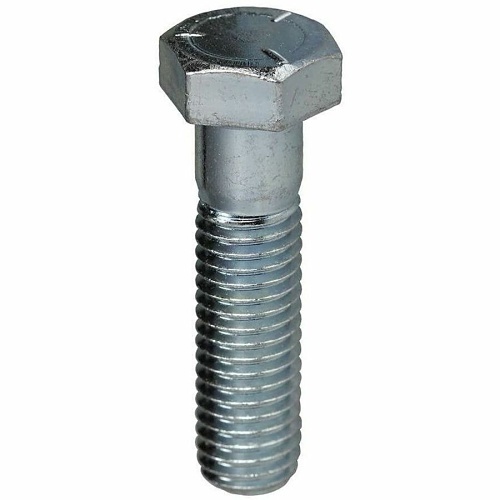

Dottie 5MB516112 Screw, 5/16"-18 1-1/2" Grade Hex Head Cap Screw
5MB516112|LH-5MB516112
Dottie 5MB516112 Screw, 5/16"-18 1-1/2" Grade Hex Head Cap Screw
5MB516112|LH-5MB516112
Dottie
Dottie 5MB516112 Screw, 5/16"-18 1-1/2" Grade Hex Head Cap Screw
5MB516112 | LH-5MB516112
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Grade 5 Hex Cap Screws are made from carbon steel and are used in applications where medium strength is necessary, typically those where controlled clamp force and high loads are required. These screws can be screwed into internally tapped holes or used with a nut. Grade 5 Hex Cap Screws should always be used with a hardened washer under the turned component. SAE J429 covers the material and performance requirements of Grade 5 Hex Cap Screws and ASME B18.2.1 covers the dimensional requirements.
Main Features
- 5/16"-18 1-1/2" Hex Head Cap Screw
- Made from carbon steel
- Medium strength for controlled clamp force
- Suitable for high load applications
- Compatible with internally tapped holes or nuts
- Requires hardened washer under turned component
- Complies with SAE J429 and ASME B18.2.1 standards
General Information
Name: Dottie 5MB516112 Screw, 5/16"-18 1-1/2" Grade Hex Head Cap Screw
Category: Dottie, Tools & Hardware, Fasteners, Screws
UPC Code: 00781002180180
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LH-5MB516112 Brand Name Dottie Connecting Thread Type 2A Manufacturer L.H. Dottie Manufacturer Part Number 5MB516112 Package Length 6 Package Net Weight 4 Packaged Quantity 100 Product Model 5MB516112 Product Type Screw Sustainability Certificates Yes
Material Medium Carbon Steel
Diameter 0.500-0.489" Fastener Type Cap Screw Finishing Zinc Plated Head Type Hex Length 1.5" Maximum Fractional Diameter 0.31" Threads Per Inch (TPI) 18
