Leviton 16D33-UR RD Female Detachable Plug Taper 2 Set 2 Set Screw 2/0-4/0
Leviton 16D33-UR RD Female Detachable Plug Taper 2 Set 2 Set Screw 2/0-4/0
Leviton 16D33-UR RD Female Detachable Plug Taper 2 Set 2 Set Screw 2/0-4/0
16D33-UR | LV-16D33UR
Please sign in to view pricing and availability and to add to cart.
Product Overview

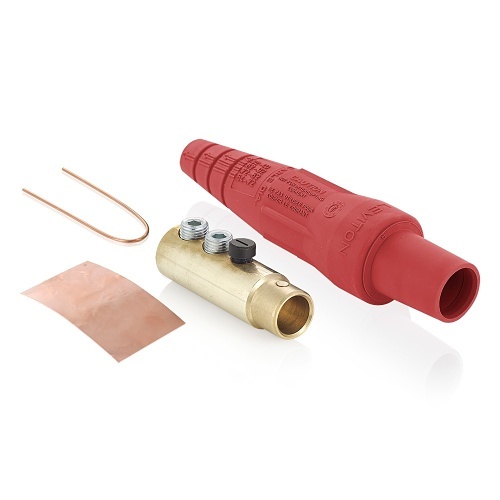

16 Series Taper Nose Cam-Type Female Plug, Contact and Insulator, Detachable, Double Set Screw Termination, 2/0 - 4/0 AWG, 400 Amp Max, Type 3R When Mated, Red Leviton’s Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools. Single or double set screw or crimp tube termination NEMA 3R rated for outdoor use when mated Designed with cylindrical profile to reduce snap UL; 1691, 508 – 35k A / 600V Short Circuit Current Rating Color-coding provides fast and easy phase identification Common applications; entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications.
Main Features
- 16 Series Taper Nose Cam-Type Female Plug
- Detachable with Double Set Screw Termination
- Supports 2/0 - 4/0 AWG, 400 Amp Max
- Type 3R Rated for Outdoor Use When Mated
- Easy Assembly and Disassembly, No Special Tools
- UL 1691, 508 Certified, 35k A / 600V Rating
- Color-Coded for Fast Phase Identification
- Ideal for Entertainment, Oil & Gas, Mining
- Suitable for Power Distribution & Construction
- Suitable for Temporary Power Applications
General Information
Specifications
ADI Part Number LV-16D33UR Brand Name Leviton Connector Gender Female Manufacturer Part Number 16D33-UR Product Name Female Plug, 2/0 - 4/0 AWG, Double Set Screw Termination Product Type Connector
Connector Type Double Set Screw
Color Red
Voltage Rating 600V
