Leviton 18R22-UG Female Panel Receptacle, Ball Nose, 90°, 2-4/0AWG, 0.75" Threaded Stud, Green
18R22-UG|LV-18R22UG
Leviton 18R22-UG Female Panel Receptacle, Ball Nose, 90°, 2-4/0AWG, 0.75" Threaded Stud, Green
18R22-UG|LV-18R22UG
Leviton
Leviton 18R22-UG Female Panel Receptacle, Ball Nose, 90°, 2-4/0AWG, 0.75" Threaded Stud, Green
18R22-UG | LV-18R22UG
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

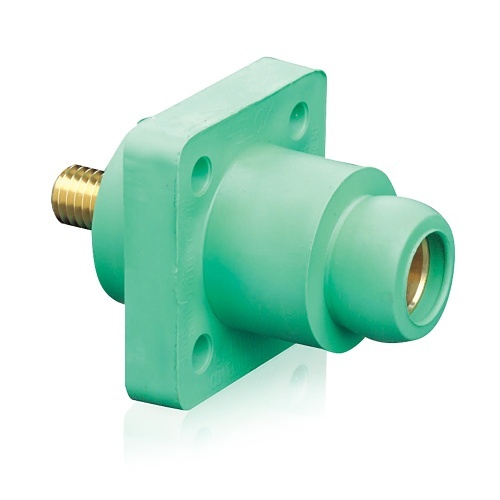

18 Series Single Pole Cam Type Female Panel Receptacle, Ball Nose, .75" Threaded Stud Termination, 90 Degrees, Cable Range #2 - 4/0, 400 Amp Max, Green Leviton's Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.
Single or double set screw termination
NEMA 3R rated for outdoor use when mated
UL: 1691, 508 - 35k A / 600V Short Circuit Current Rating
Color-coding provides fast and easy phase identification
Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications
Single or double set screw termination
NEMA 3R rated for outdoor use when mated
UL: 1691, 508 - 35k A / 600V Short Circuit Current Rating
Color-coding provides fast and easy phase identification
Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications
Main Features
- Female Panel Receptacle with Ball Nose Design
- 90° Angle for Versatile Installation
- Supports 2-4/0 AWG Cable Range
- 0.75" Threaded Stud Termination
- 400 Amp Maximum Capacity
- Green Color for Easy Identification
- Rhino-Hide for Indoor/Outdoor Use
- NEMA 3R Rated for Outdoor Applications
- UL 1691, 508 Certified for Safety
- Ideal for Entertainment, Oil & Gas, Mining, and Construction
General Information
Name: Leviton 18R22-UG Female Panel Receptacle, Ball Nose, 90°, 2-4/0AWG, 0.75" Threaded Stud, Green
Category: Leviton, Batteries & Power Supplies, Electrical Plugs & Connectors, Power Plugs
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-18R22UG Brand Name Leviton Manufacturer Leviton Mfg. Company, Inc Manufacturer Part Number 18R22UG Product Line Rhino-Hide Product Name Rhino-Hide Power Socket Product Series 18 Product Type Power Socket
Color Green
Current Rating 400 A Voltage Rating 600 V AC
Certifications & Standards - CSA Certified : File 152105
- UL Listed : File E-13399; 1691
