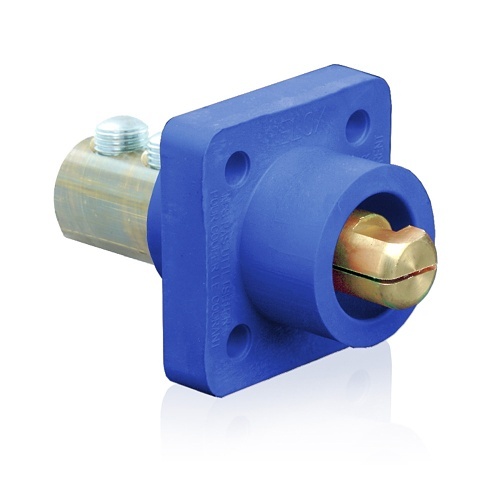

Leviton 18R23-UB 18 Series Male Panel Receptacle, Double Set Screw, 2/0-4/0AWG
Leviton 18R23-UB 18 Series Male Panel Receptacle, Double Set Screw, 2/0-4/0AWG
Leviton 18R23-UB 18 Series Male Panel Receptacle, Double Set Screw, 2/0-4/0AWG
18R23-UB | LV-18R23UB
Please sign in to view pricing and availability and to add to cart.
Product Overview
18 Series Single Pole Cam Type Male Panel Receptacle, Ball Nose, Double Set Screw Termination, 90 Degrees, Cable Range #2 - 4/0, 400 Amp Max, Blue Leviton's Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.
Single or double set screw termination
NEMA 3R rated for outdoor use when mated
UL: 1691, 508 - 35k A / 600V Short Circuit Current Rating
Color-coding provides fast and easy phase identification
Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications
Main Features
- 18 Series Male Panel Receptacle
- Ball Nose, Double Set Screw Termination
- 90 Degrees Cable Range #2 - 4/0
- 400 Amp Max Capacity
- Blue Color for Phase Identification
- Rhino-Hide for Indoor/Outdoor Use
- Easy Assembly/Disassembly
- NEMA 3R Rated for Outdoor Use
- UL 1691, 508 Certified
- Suitable for Entertainment, Oil & Gas, Mining
General Information
Specifications
ADI Part Number LV-18R23UB Brand Name Leviton Manufacturer Leviton Mfg. Company, Inc Manufacturer Part Number 18R23UB Product Line Rhino-Hide Product Name Male Receptacle, 90-Degree, 2/0 - 4/0 AWG, Double Set Screw Termination Product Series 18 Product Type Power Socket
Color Blue
Voltage Rating 600V AC
