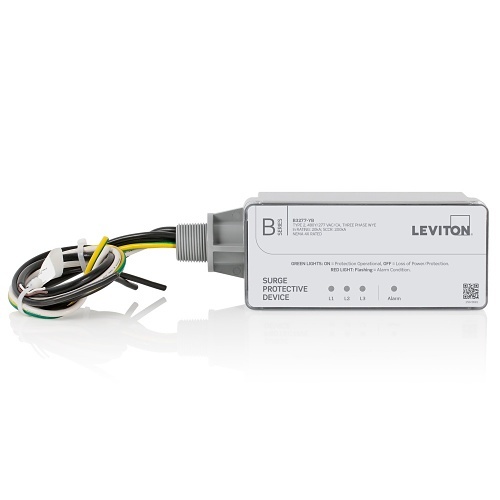

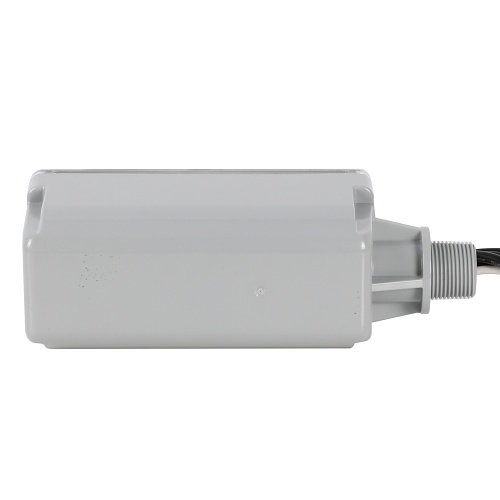

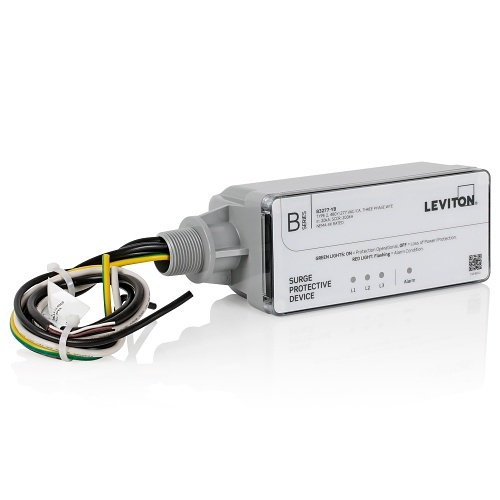

Leviton B3277-YB B Series Type 2 Surge Protective Device, 480Y/277V AC, Three Phase WYE
B3277-YB|LV-B3277YB
Leviton B3277-YB B Series Type 2 Surge Protective Device, 480Y/277V AC, Three Phase WYE
B3277-YB|LV-B3277YB
Leviton
Leviton B3277-YB B Series Type 2 Surge Protective Device, 480Y/277V AC, Three Phase WYE
B3277-YB | LV-B3277YB
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
B Series Type 2 Surge Panel, 480Y/277 VAC, Three Phase WYE, Max Surge Current Rating of 65kA per Mode/130kA per Phase, 200kA Short Circuit Current Rating (SCCR), 20kA I-nominal (ln) Rating, NEMA 4X Rated Enclosure, Thermally Protected MOVs, VPR Performance Data = L-N: 1200, L-G: 1200, N-G: 1200, L-L: 2500, Maximum Continuous Operating Voltage (MCOV): 350V/700V, Plastic Enclosure, LED Status Monitoring, Audible Alarm, UL 1449 Listed, UL 1283 EMI/RFI Filtering, Approximate.
Main Features
- The maximum amount of current the device is capable of diverting to ground during a single surge event without performance degradation of more than 10%
- Higher values are better
- The amount of current the device can divert to ground 15 times under specific test conditions and maintain performance levels
- The maximum voltage a surge protector will let through to connected devices
- Lower values are better
- The maximum current a device or system can safely withstand for a specified time, or until a specified fuse or circuit breaker opens and clears the circuit
- Maximum line voltage (or V rms) that may be applied to the SPD without damaging the MOV
- A lower MCOV rating allows for a lower VPR, but decreases the life of an MOV
- A mode is a path that has an SPD component between two electrical points
- A mode is a path that has an SPD component between two electrical points
General Information
Name: Leviton B3277-YB B Series Type 2 Surge Protective Device, 480Y/277V AC, Three Phase WYE
Category: Leviton, Batteries & Power Supplies, Power Strips & Surge Protectors, Surge Protection Modules
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-B3277YB Brand Name Leviton Manufacturer Part Number B3277-YB Product Name Type 2 Surge Protective Device, 480Y/277 VAC, Three Phase WYE Product Series B Product Type Surge Protective Device
Input Voltage 277V AC
Limited Warranty 5-Year
Environmental Certification CSA, NEMA 4X, RoHS, UL
