Leviton

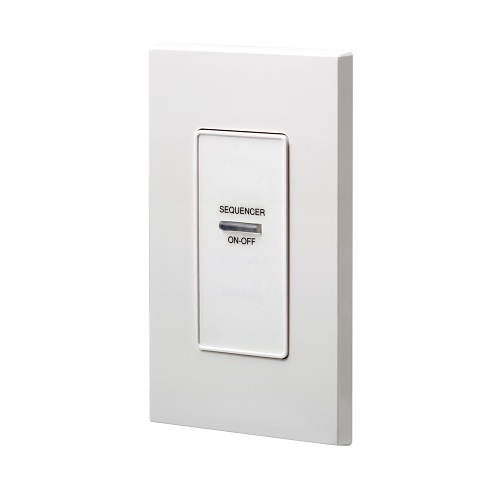

Leviton D42SQ-W Sequence Station Button 1G, White
D42SQ-W | LV-D42SQW
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
A complete range of Decora remote control stations are available for the Dimensions D4200 commercial lighting control systems. Use with any of the Decora or Decora Plus screwless wallplates.
Main Features
- 1 pushbutton for on/off sequence control
- All control switches are back lighted to indicate what has been selected
- Excellent tactile feel, and a "click" you can feel
- Used with Leviton DECORA PLUS plates there are no visible fasteners
- Most units have an infrared receiver inside, and presets can be selected from a remote hand held infrared transmitter
- As many as 127 units can be operated on one set of control wires
- Only four wires required, two data wires, and two low voltage (12V DC) power wires
- All wiring can be Class 2
General Information
Name: Leviton D42SQ-W Sequence Station Button 1G, White
Category: Leviton, Smart Home, Smart Dimmers & Light Switches
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-D42SQW Brand Name Leviton Manufacturer Part Number D42SQ-W Product Line D4000 Product Name Dimensions, Sequencer Product Type Sequencer
Control Type Push Button Controllable Function Light Control
Color White
Limited Warranty 2-Year
