Product Overview

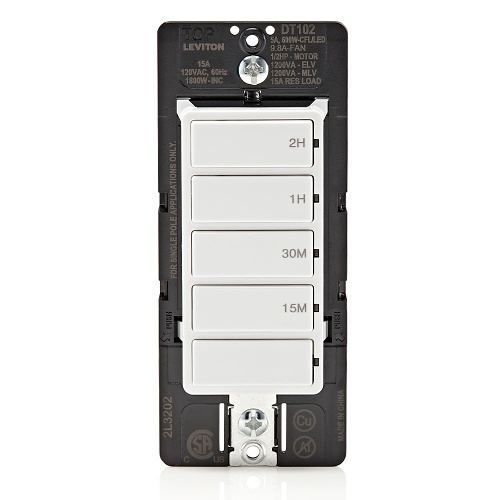

The Decora 2-Hour Countdown Timer Switch has 5-buttons with 15 min, 30 min, 1 hr and 2 hr preset time options and a manual off button. Single Pole, 600W LED/CFL, 1800W Incandescent / Halogen, 1200VA Magnetic Low Voltage / Electronic Low Voltage / Fluorescent, 1/2 HP/9.8A fan / motor, 15A resistive. Can be installed with or without a neutral wire, wallplate sold separately.
Main Features
- Replace a standard wall switch with a countdown timer to ensure exhaust fans or lights are not left on unintentionally
- 4-Preset time option buttons 15-30 min, 1-2 hr with separate off button
- Do not use to control lights if there is no other light source in the space
- Shallow design easily fits in the wallbox and lead terminal wires for easier installation without having to bend wires around terminal screws
- Zero Cross turn-on technology to extend the life of the switch
- DIY Friendly with two black wires that can be interchanged between line and load to help prevent miswiring
- Manual override keeps load on for 24 hr
- Override can be disabled by pressing one of the timer option buttons or off button

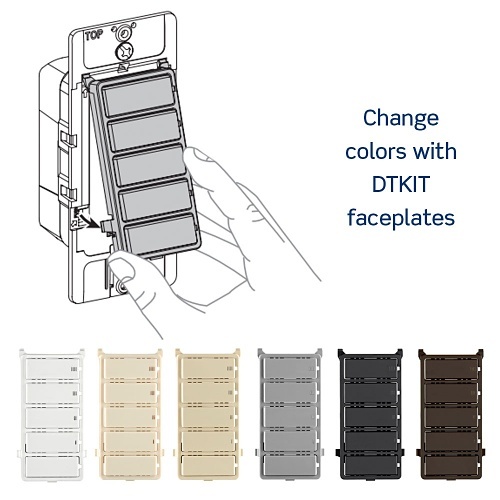

- Change color with DTKIT faceplates available in white, ivory, light almond, gray, black and brown (sold separately)
General Information
Name: Leviton DT102-1LW 15A Single Pole Decora Timer, 5-Key 15 min/30 min/1 hr/2 hr, White
Category: Leviton, Smart Home, Smart Dimmers & Light Switches
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-DT1021LW Brand Name Leviton Manufacturer Part Number DT102-1LW Product Name Decora In-Wall 2-Hour Countdown Timer Switch, 15A, ? HP/9.8A Fan/Motor, Single Pole, Decora In-Wall 2-Hour Countdown Timer Switch, 15A, ? HP/9.8A Fan/Motor, Single Pole Product Type Countdown Timer Switch
Control Type Push Button Controllable Function Fan Control, Motor Control
Color White Depth 1.34" Width 1.73"
Current Rating 15A Input Voltage 120V AC Power Rating 1200VA, 1800W, 600W
Switch Type Timer Switch
Limited Warranty 5-Year
Certifications & Standards CSA, FCC, IC Country of Origin CN Environmental Certification RoHS
