Product Overview

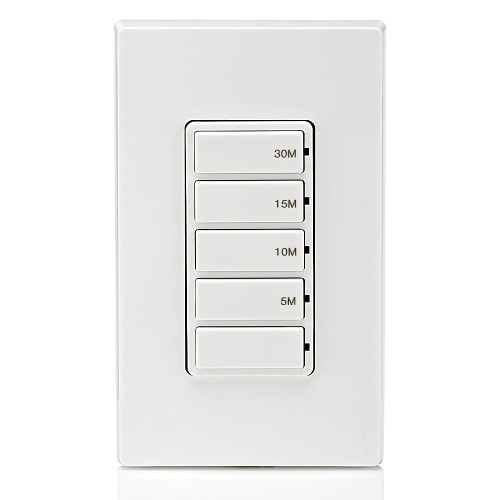

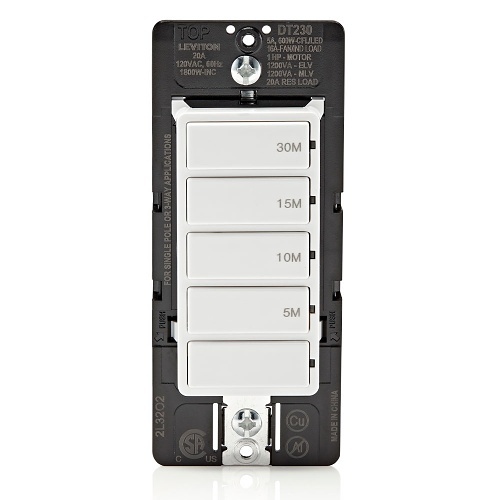

The Decora 30-Minute Countdown Timer Switch has 5 buttons with 5 min, 10 min, 15 min and 30 min preset time options and a manual off button. The larger load capacity can handle larger fixtures and fans. Single pole, multi-way using DD0SR Switch Companion or multi-timer using two DT230 Countdown Timers. 600W LED/CFL, 1800W Incandescent / Halogen, 1200VA Magnetic Low Voltage / Electronic Low Voltage / Fluorescent, 1 HP/16A fan / motor, 20A resistive / 16A inductive. Requires a neutral wire for installation, wallplate sold separately.
Main Features
- Replace a standard wall switch with a countdown timer to ensure exhaust fans or lights are not left on unintentionally
- Four preset time option buttons 5-10-15-30 min with separate off button
- Do not use to control lights if there is no other light source in the space

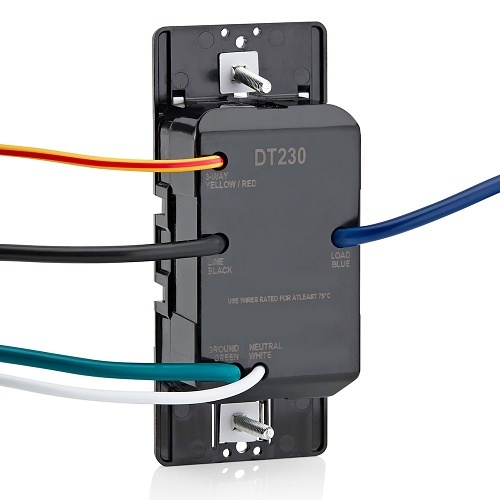

- Shallow design easily fits in the wallbox and lead terminal wires for easier installation without having to bend wires around terminal screws
- Designed with load capacity to handle larger exhaust fans, pumps and fixtures
- Single pole, multi-way using DD0SR Switch Companion or multi-timer using two DT230 countdown timers
- Zero Cross turn-on technology to extend the life of the switch
- Manual override keeps load on for 24 hr. Override can be disabled by pressing one of the timer option buttons or off button
- Change color with DTKIT faceplates available in white, ivory, light almond, gray, black and brown (sold separately)
General Information
Name: Leviton DT230-1LW 20A Single Pole 3-Way Decora Timer with -Key Settings for 5, 10, 15, and 30 Minutes, White
Category: Leviton, Smart Home, Smart Dimmers & Light Switches
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-DT2301LW Brand Name Leviton Manufacturer Part Number DT230-1LW Product Name Decora In-Wall 30-Minute Countdown Timer Switch, 20A, 1 HP/16A Fan/Motor, Single Pole/Multi-Way/Multi-Timer Product Type Countdown Timer Switch
Control Type Push Button Controllable Function Fan Control, Motor Control
Color White Depth 1.34" Width 1.73"
Current Rating 20A Input Voltage 120V AC Power Rating 1200VA, 1800W, 600W
Switch Type Timer Switch
Limited Warranty 5-Year
Certifications & Standards CSA, FCC, IC Compatibility DD0SR, DT230 Country of Origin CN
