Product Overview

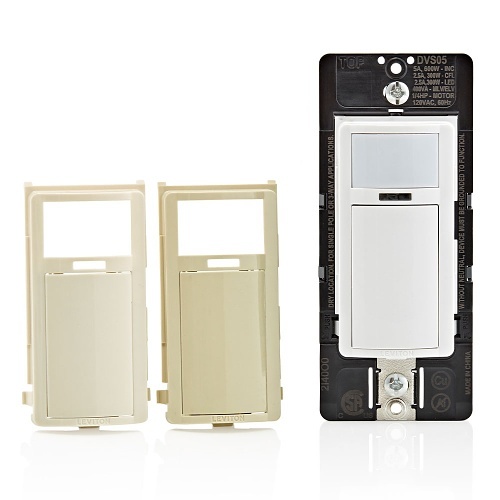

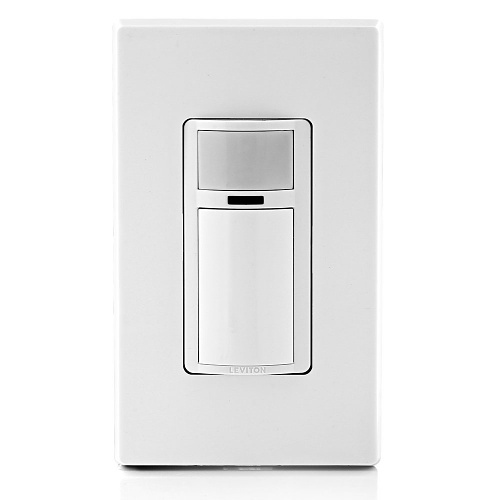

Decora Vacancy Motion Sensor Light Switch. 180° PIR Manual-on, automatic-off, wallbox sensor, single pole or 3-way when used with a single pole or 3-way switch, 300W LED/CFL, 600W incandescent / halogen, 400VA Magnetic Low Voltage, 400VA Electronic Low Voltage, 1/4 HP Motor, 5A resistive, wallplate sold separately. Can be used to comply with 2019 California Title 24, Part 6 Vacancy Control Device Requirements. White with Ivory and light almond faceplates included.
Main Features
- Manual-On / Automatic Off operation
- Controls LED, CFL, incandescent, halogen, magnetic low voltage, electronic low voltage or motor loads
- Provides 180° field-of-view, 900sq. ft. of coverage
- Shallow design easily fits in the wallbox and can replace single pole switch

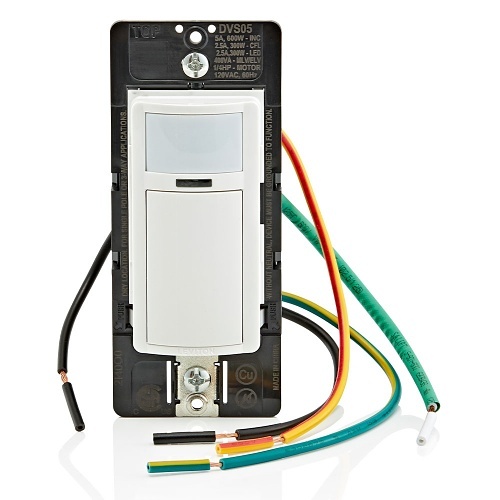

- Leaded terminals for easier installation
- Can be connected to a Neutral wire if present in the wallbox, or connected to ground wire if no Neutral wire is present in the wallbox
- Interchangeable line and load wires
- Single pole or 3-way when used with a single pole or 3-way switch
- Program settings without removing the wallplate or faceplate
- Low profile design blends in with walls for a discreet appearance
General Information
Name: Leviton DVS05-1LZ Vacuum Sensor with 600W Incandescent 300W LED Options, Available in White, Ivory, and Lavender
Category: Leviton, Smart Home, Smart Dimmers & Light Switches
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-DVS051LZ Brand Name Leviton Manufacturer Part Number DVS05-1LZ Product Name Decora Vacancy Motion Sensor Light Switch, Manual-On, 5A, Residential Grade, Single Pole or 3-Way Product Type Switch
Control Type Push Button Controllable Function Light Control
Color Almond, Ivory, White Depth 1.38" Height 4.13" Width 1.73"
Input Voltage 120V AC
Switch Type Single-Pole
Limited Warranty 5-Year
Certifications & Standards CSA, FCC, Title 24 Country of Origin CN Environmental Certification RoHS
