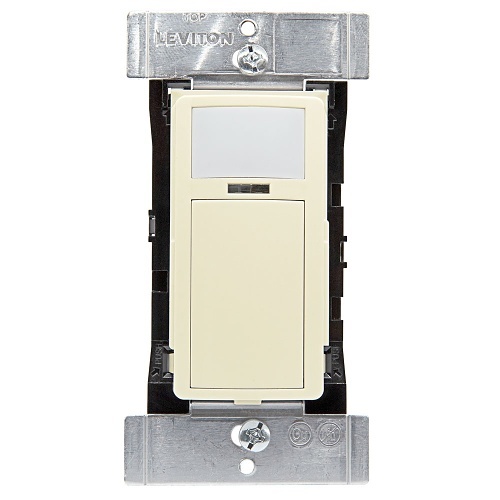

Leviton ODS15-I1I WB BLE Passive Infrared 15A On/Off Smart Wallbox, Bluetooth, 120V
Leviton ODS15-I1I WB BLE Passive Infrared 15A On/Off Smart Wallbox, Bluetooth, 120V
Leviton ODS15-I1I WB BLE Passive Infrared 15A On/Off Smart Wallbox, Bluetooth, 120V
ODS15-I1I | LV-ODS15I1I
Please sign in to view pricing and availability and to add to cart.
Product Overview
Smart Sensor, PIR, Wallbox, App configurable; Auto-ON / Auto-OFF or Manual-ON / Auto-OFF, neutral wire required, 120V AC, 60 Hz, Commercial Grade, Ivory. Wall plate sold separately. The Leviton Smart Sensor uses Passive Infrared (PIR) detection technology to monitor a room for occupancy using a segmented, tamper-resistant lens. When a person passes in or out of a sensor zone, the sensor detects motion and switches the lights ON. The lights will remain ON as long as an occupant is moving through the sensor zones. The ODS15-Ixx 's vacancy mode features a Manual-ON / Auto-OFF for installations where manual-ON switching is required for energy code applications. Configuration of ODS15-Ixx is made using the Leviton Smart Sensor App from a smartphone or other Bluetooth enabled Android or iOS device. Simple configuration can also be applied using pushbutton setup for several popular preconfigured options. Ideal for non-residential and commercial spaces up to 1,100 SF including offices, meeting rooms, and lobbies.
Main Features
- Can be used to comply with IECC, ASHRAE 90.1, and 2019 Title 24, Part 6 occupancy / vacancy sensing and manual control requirements
- Fits in a standard wallbox and gangable with other units
- Controls General Purpose plug loads up to 20A and LED lighting loads up to 10A
- One relay module for single-level switching
- 180° Field-of-view provides approximately 1,100sq. ft. of coverage
- Maximum sensing distance in front of the sensor is 30-40' and 15-20' on either side
- Advanced configuration can be performed using the Leviton Smart Sensor App on any Bluetooth enabled Android or iOS device; Set operating mode to Auto-ON / Auto-OFF or Manual-ON / Auto-OFF
- Adjust the sensitivity of the sensor to increase or decrease coverage area; Adjust timeouts, Activate the nightlight and select nightlight colors, Add daylighting hold-off and select target daylighting levels
- Set a security code to lock configuration settings; Out-of-the-box configuration default mode; Auto-ON/Auto-OFF with 10 min time out
- Sensitivity set to 75%
General Information
Specifications
ADI Part Number LV-ODS15I1I Brand Name Leviton Manufacturer Part Number ODS15-I1I Product Line ODS15 Product Name Smart Sensor, PIR, Wallbox Occupancy Sensor/Vacancy Sensor, App configurable, 120VAC, Commercial Grade, Ivory Product Type Smart Sensor
Application/Usage Lobbies, Small Meeting Rooms, Small offices Color Ivory Depth 1.42" Height 4.13" Width 2.12"
Input Voltage 120V AC
Limited Warranty 5-Year
Environmental Certification ASHRAE 90.1 and Title 24, FCC, ICC. Can be used to comply with IECC, IECC, Part 6 occupancy/vacancy and manual control requirements, UL and cUL Listed Environmentally Friendly Yes
