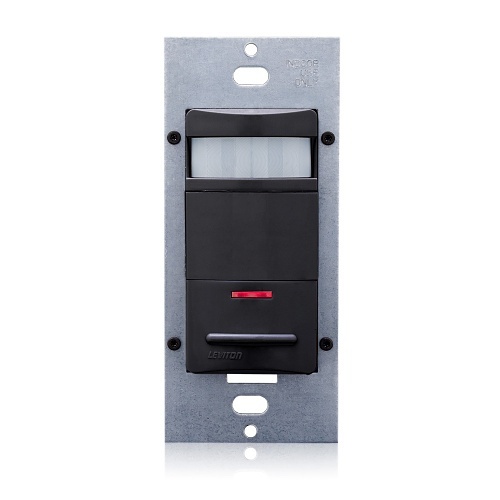

Leviton OSS10-INE Vacancy Sensor Wall Switch with Night Lite, Ebony
Leviton OSS10-INE Vacancy Sensor Wall Switch with Night Lite, Ebony
Leviton OSS10-INE Vacancy Sensor Wall Switch with Night Lite, Ebony
OSS10-INE | LV-OSS10INE
Please sign in to view pricing and availability and to add to cart.
Product Overview
Passive Infrared, Vacancy Sensor Wall Switch with Night Light lighting control, 180° coverage, 2100 sq. ft., ManualON/AutoOFF, Time Delay 30 s-30 min. Adjustable Blinders, CEC Title 20/24, ETL Listed, RoHS Compliant, 120/208/220/230/240/277v, 50/60 Hz, USMCA Compliant. The passive infrared (PIR) vacancy sensor detects motion from a heat-emitting source within its field-of-view to automatically switch lights OFF, offering the same performance features as the ODS family of occupancy sensors. OSS10 Has the ability to reduce (dim) and turn off the "Guide Light" function with a simple dial setting. The LED NightLight consumes less than 1/2W providing energy savings and guide lighting when room lights are off. OSS10 Is perfect for use in hospitality and health care facilities with night light feature to guide to manual-ON. The adjustable time delay settings of 30 s-30 min will automatically turn lights OFF. The NightLight Occupancy Sensor Wall Switch can be used to provide automatic lighting control for energy savings and convenience in a variety of commercial applications.
Main Features
- Fits in standard wallbox and replaces single-pole wall switch, ground and neutral connection required
- Gangable with other units
- Low-profile design eliminates obtrusive "scanning device" look, Elegant Decora wallplates complement any interior for sleek aesthetics, uses Decora wallplates and coordinates with Leviton's popular line of Decora wiring devices
- 180° Field-of-view provides approximately 2100 SF of coverage
- Convenient pushbutton provides manual-ON / OFF light switching at any time
- 2-Dual element PIR sensors used to widen detection range and double the detection points within the FOV
- Segmented Fresnel lens provides optimum sensitivity and performance
- Designed with an extensive "minor motion" area where even slight body movements will be detected
General Information
Specifications
ADI Part Number LV-OSS10INE Brand Name Leviton Manufacturer Part Number OSS10-INE Product Line OSS10 Product Name Vacancy Sensor with LED NightLight, PIR, Wall Switch, 2100SF, 120-277V, Black, USMCA, Decora?, Vacancy Sensor with LED NightLight, PIR, Wall Switch, 2100SF, 120-277V, Black, USMCA, Decora? Product Type Vacancy Sensor
Application/Usage Bathrooms, Classrooms, Conference Rooms, Hotel and Hospital Restrooms, Lounges, Small offices, Storage Areas Color Black Depth 1.35" Height 4.06" Width 1.75"
Input Voltage 120V AC, 230V AC, 277V AC
Limited Warranty 5-Year
Environmental Certification FCC Compliant, NOM, UL/cUL Certified Environmentally Friendly Yes
