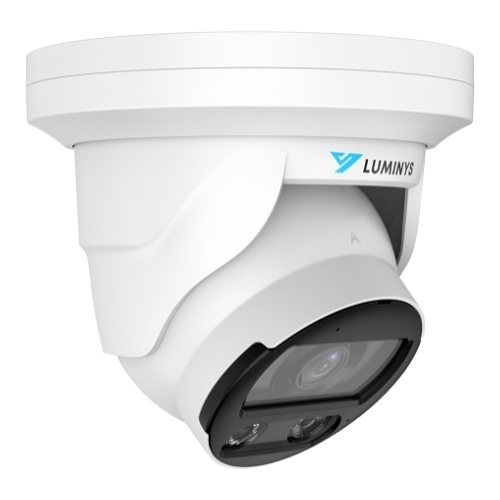

Luminys N5T-8CA2 8MP LumiColor IP Turret Camera, 2.8mm Fixed Lens
Luminys N5T-8CA2 8MP LumiColor IP Turret Camera, 2.8mm Fixed Lens
Luminys N5T-8CA2 8MP LumiColor IP Turret Camera, 2.8mm Fixed Lens
N5T-8CA2 | LY-N5T8CA2
Please sign in to view pricing and availability and to add to cart.
Product Overview
The 8MP LumiColor camera is part of Luminys’s N5 mainstream series of security devices. N5 mainstream series devices are designed with a suite of advanced LumiTechnologies to meet the needs of today’s evolving security market. LumiColor technology capptures full-color video from dusk to dawn, acting as a deterrent while capturing color footage in complete darkness (0 lux). Cameras with this technology have integrated white-light LEDs to illuminate scenes in low lighting. The integrated white lights work in combination with a large aperture lens to capture more available light and reproduce color images with superior detail and contrast.
Main Features
- 8MP Turret Housing
- 2.8mm Lens
- LumiColor with White-Light LEDs
- Video Content Analytics+: Line Crossing, Intrusion, Loitering Detection, Parking Detection
- LumiAnalytics: Face Detection, People Counting, Heat Map, Queue Management, Smart Object Detection
- iMD, LumiSearch
- LumiPower (extends distance up to 3,000')
- IP67
- NDAA
General Information
Specifications
ADI Part Number LY-N5T8CA2 Brand Name Luminys Manufacturer Part Number N5T-8CA2 NDAA Compliant Yes Product Line LumiColor Product Model N5T-8CA2 Product Name 8MP Network LumiColor Turret Camera (2.8 mm) Product Series N5-C Mainstream Product Type Camera Weight 1.7lb
Effective Camera Resolution 8MP Field of View Diagonal, Horizontal, Vertical Lens Type Fixed Maximum Aperture f/1.0 Maximum Frame Rate 30fps Night Vision Yes Night Vision Type Infrared (IR) Video Formats H.264, H.264B, H.264H, H.265, LumiFocus, MJPEG
Night Vision Distance 98.4' Wide Dynamic Range Yes
Maximum Video Resolution 3840 x 2160
Maximum Operating Temperature 140°F Minimum Operating Temperature -40°F Operating Humidity 0.95
Longest Shutter Speed 1/3 Second Minimum Illumination 0.0005|0 lux Shortest Shutter Speed 1/100000 Second
Focal Length 2.8 mm Lens Included Yes Maximum Focal Length 2.8 mm
Form Factor Turret Height 5.1"
Input Voltage 12V DC
Diameter 5.6"
Storage Type Memory Card
Environmental Certification FCC, IC, UL Ingress Protection Rating IP67
