Lantronix SM24DP4XA-EU Managed Fiber Aggregation Switch, 20-Port 100/10, Switches & Bridges
SM24DP4XA-EU|P6-24DP4XAEU
Lantronix SM24DP4XA-EU Managed Fiber Aggregation Switch, 20-Port 100/10, Switches & Bridges
SM24DP4XA-EU|P6-24DP4XAEU
Lantronix
Lantronix SM24DP4XA-EU Managed Fiber Aggregation Switch, 20-Port 100/10, Switches & Bridges
SM24DP4XA-EU | P6-24DP4XAEU
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Managed Gigabit Ethernet Fiber Switch

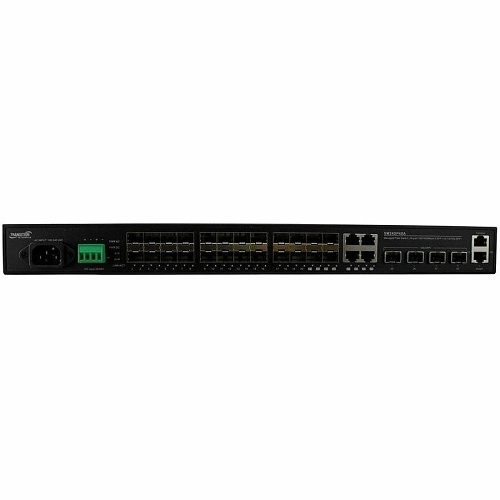

(20) 100/1000Base-X SFP Slots + (4) 100/1000Base SFP/RJ-45 Combo Ports + (4) 1G/10GBase-X SFP+ Slots
This switch is a next generation Layer 2 managed switch with 128Gbps switching capacity. It provides up to (24) dual speed fiber slots and (4) 10Gig aggregation ports, it's an ideal switch for fiber aggregation applications.
Main Features
- Supports IPv4/IPv6 dual protocol stack
- Support Jumbo Frame up to 1518-4776 bytes
- Authentication - IEEE 802.1X, RADIUS, TACACS+
- Security - Supports SSH/SSL
- DHCP Relay, DHCP Option 82
- L2/L3/L4 ACLs Support MAC ACL, IP standard/extended ACL, IEEE 802.1p, Ethernet type
- LLDP (Link Layer Discovery Protocol)
- DHCP Server
- IEEE 802.3az Energy Efficiency
- IP Source Guard, Port Security
General Information
Name: Lantronix SM24DP4XA-EU Managed Fiber Aggregation Switch, 20-Port 100/10, Switches & Bridges
Category: Lantronix, Data Comm & Networking, Hubs, Routers & Switches, Network Switches
UPC Code: 783384250314
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P6-24DP4XAEU Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number SM24DP4XAEU Product Model SM24DP4XA-EU Product Name SM24DP4XA Ethernet Switch Product Series SM24DP4XA Product Type Ethernet Switch Weight 2.87lb
Media Type Supported Optical Fiber, Twisted Pair Power Consumption 60W
Expansion Slot Type SFP (mini-GBIC), SFP+ Number of SFP Slots 24 Number of SFP+ Slots 24 Number of Total Expansion Slots 28 Shared SFP Slot Yes
Modular Yes Network (RJ-45) Yes Total Number of Network Ports 4
Manageable Yes
Network Technology 100/1000Base-FX, 1000Base-TX, 1000Base-X, 10GBase-X
Ethernet Technology 10 Gigabit Ethernet Layer Supported 4 Networking Standards IEEE 1588v2, IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ag, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Depth 8.3" Form Factor Rack-mountable Height 1.7" Width 17.4"
Input Voltage 120V AC, 230V AC, 24V DC, 48V DC Power Source Power Supply
Limited Warranty 5-Year
Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Package Contents SM24DP4XA Ethernet SwitchPower Cord Europe19" Rack Mount Bracket
