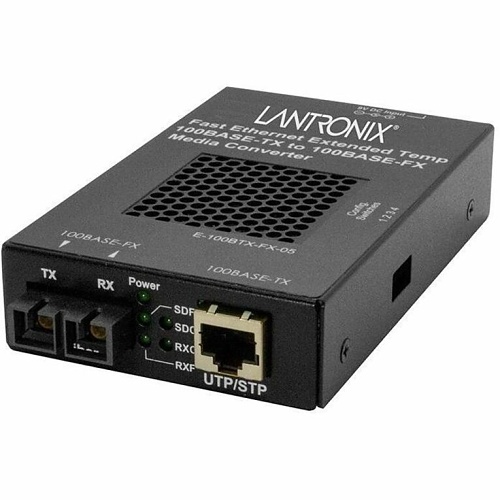

Lantronix E-100BTX-FX-05(SCHT)-EU E-100BTX Series 100Mbps Transmitter to Fiber Optic Converter, European Power Supply
Lantronix E-100BTX-FX-05(SCHT)-EU E-100BTX Series 100Mbps Transmitter to Fiber Optic Converter, European Power Supply
Lantronix E-100BTX-FX-05(SCHT)-EU E-100BTX Series 100Mbps Transmitter to Fiber Optic Converter, European Power Supply
E-100BTX-FX-05(SCHT) | P6-BTF5CHTU
Please sign in to view pricing and availability and to add to cart.
Product Overview
Unmanaged Hardened Fast Ethernet Media Converter
(1) 100Base-TX Port + (1) 100Base-FX Port
The E-100BTX-HT Series is a Hardened Ethernet stand-alone media converter that provides an interface between 100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into extreme 100Base-TX copper environments, by supporting an operating temperature range of -25°C to 65°C. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential.
Main Features
- Extended Temperature Capable: Designed to operate in environments where ambient temperatures can rise as high as 65°C (149°F)
- Auto-Negotiation
- Auto-MDI/MDIX
- Link Pass Through
- Far-End-Fault Detection
- Automatic Link Restoration
- Pause
General Information
Specifications
ADI Part Number P6-BTF5CHTU Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number E100BTXFX05SCHTEU Maximum Distance 1.24 Mile Packaged Quantity 2 Product Model E-100BTX-FX-05(SCHT) Product Name E-100BTX-FX-05(SCHT) Transceiver/Media Converter Product Series E-100BTX-HT Product Type Transceiver/Media Converter Weight 2lb
Fiber Optic Mode Multimode Media Type Supported Optical Fiber, Twisted Pair
Network (RJ-45) Yes Number of Network (RJ-45) Ports 1 Number of Ports 2 Number of SC Ports 1
Fiber Optic Wavelength 1300 nm Network Technology 100Base-FX, 100Base-TX
Ethernet Technology 10 Gigabit Ethernet
Depth 4.7" Form Factor DIN Rail Mount, Shelf Mount, Standalone, Wall Mount Height 1" Width 3"
Input Voltage 120V AC, 230V AC Power Source AC, DC
Limited Warranty Lifetime
Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Package Contents E-100BTX-FX-05(SCHT) Transceiver/Media ConverterPower Supply - Europe
