Lantronix C4221-4848 Media Converter, 10 Gigabit Ethernet to BaseX
Lantronix C4221-4848 Media Converter, 10 Gigabit Ethernet to BaseX
Lantronix C4221-4848 Media Converter, 10 Gigabit Ethernet to BaseX
C4221-4848 | P6-C42214848
Please sign in to view pricing and availability and to add to cart.
Product Overview

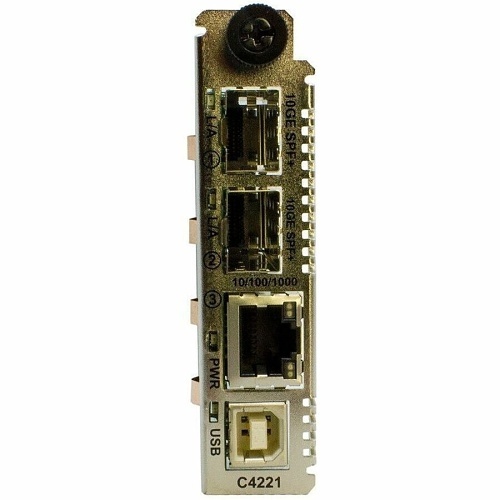

The ION C4221 Network Interface Device (NID) is a remotely managed product that offers management via the ION Management Module for secure delivery of Ethernet services for business and mobile backhaul applications. The C4221 is a 10 Gig product with advanced features like remote management of the local and remote cards, VLAN, jumbo frame support, and bandwidth allocation of 10 Gig interfaces. The C4221 offers the additional functionality of a rate converter by also offering a 10/100/1000Base-T RJ-45 port allowing 10/100/1000 based devices to connect to 10 Gigabit Ethernet fiber backbone.
Main Features
- Full non-blocking switching on all interfaces
- (2) 10 Gig SFP+ ports supporting 100FX, 1000X, SGMII, and 10 Gig
- SFP ports individually support same or different speeds simultaneously
- (1) 10/100/1000Base-T port
- Local and remote units can be fully managed by the ION platform
- IPv4 IP TOS, DiffServ and IPv6 traffic class QoS classification via IONMM
- Bandwidth Allocation, per port, from 1 Gig to 10 Gig in 1 Gig increments
- Basic VLAN support
- Jumbo frame support, up to 10,240 bytes
- 16K maximum MAC Addresses
General Information
Specifications
ADI Part Number P6-C42214848 Brand Name Lantronix Manufacturer Transition Networks, Inc Manufacturer Part Number C4221-4848 Product Line ION Product Name ION C4221 Transceiver/Media Converter Product Series C4221 Product Type Transceiver/Media Converter Weight 1lb
Media Type Supported Optical Fiber, Twisted Pair Power Consumption 6.24W
Expansion Slot Type SFP+ Number of SFP+ Slots 2 Number of Total Expansion Slots 2
Network (RJ-45) Yes Number of Network (RJ-45) Ports 1 Number of Ports 1
Network Technology 10/100/1000Base-T, 10GBase-X
Ethernet Technology 10 Gigabit Ethernet
Depth 6.5" Height 3.4" Width 0.9"
Power Source DC
Limited Warranty 10-Year
Environmentally Friendly Yes
