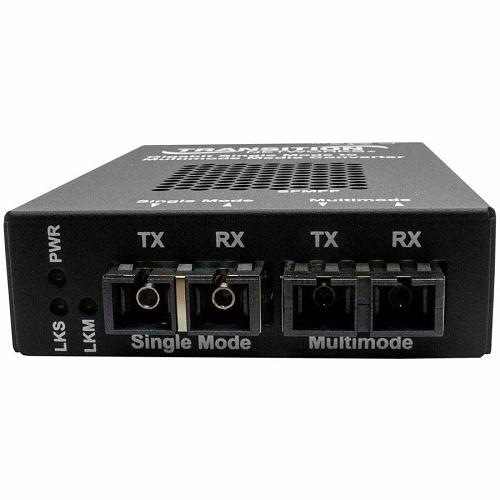

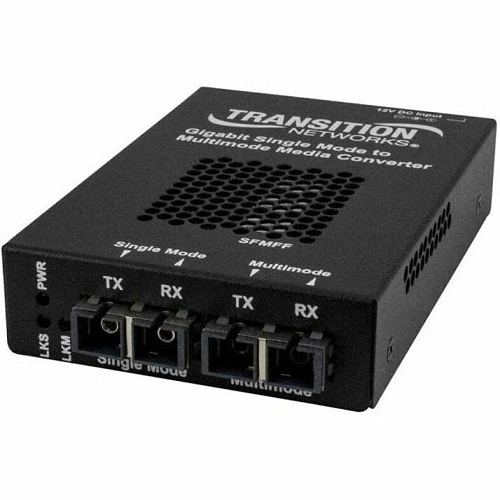

Lantronix SFMFF1314-220-JP Transition Stand-Alone Transceiver Single Mode to Multi-Mode, 1.25Gbps Per Second
SFMFF1314-220|P6-FMFF322JP
Lantronix SFMFF1314-220-JP Transition Stand-Alone Transceiver Single Mode to Multi-Mode, 1.25Gbps Per Second
SFMFF1314-220|P6-FMFF322JP
Lantronix
Lantronix SFMFF1314-220-JP Transition Stand-Alone Transceiver Single Mode to Multi-Mode, 1.25Gbps Per Second
SFMFF1314-220 | P6-FMFF322JP
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The SFMFF1314-220 stand-alone, when used individually or in pairs, functions as a mode converter that extends Gigabit Ethernet or Fiber Channel signals over single-mode fiber up to 125km. The SFMFF1314-220 also converts 1000Base-SX ports on a Gigabit Ethernet switch to 1000Base-LX on a port-by-port basis.
Main Features
- Auto-Negotiation (1000Base-X ports)
- Link Pass Through
- Pause
- Automatic Link Restoration
- Protocol Transparency
General Information
Name: Lantronix SFMFF1314-220-JP Transition Stand-Alone Transceiver Single Mode to Multi-Mode, 1.25Gbps Per Second
Category: Lantronix, Data Comm & Networking, Media Converters & Transceivers, Media Converters
UPC Code: 783384248373
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P6-FMFF322JP Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number SFMFF1314220JP Maximum Distance 12.43 Mile Packaged Quantity 1 Product Model SFMFF1314-220 Product Name Stand-alone Fiber to Fiber Media Converter Product Type Transceiver/Media Converter Weight 2lb
Fiber Optic Mode Multimode, Single-mode Media Type Supported Optical Fiber
Number of Ports 2 Number of SC Ports 2
Fiber Optic Wavelength 1300 nm, 1310 nm Network Technology 1000Base-SX, Fibre Channel
Ethernet Technology 10 Gigabit Ethernet
Depth 4.7" Form Factor DIN Rail Mount, Standalone, Wall Mount Height 1" Width 3.3"
Power Source AC, DC
Limited Warranty Lifetime
Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Package Contents Stand-alone Fiber to Fiber Media Converter Power Supply (Japan)
