Lantronix F-SM-MM-02-OZ Multi SM Fiber 155M Bw, O Zps
F-SM-MM-02|P6-FSMMM02OZ
Lantronix F-SM-MM-02-OZ Multi SM Fiber 155M Bw, O Zps
F-SM-MM-02|P6-FSMMM02OZ
Lantronix
Lantronix F-SM-MM-02-OZ Multi SM Fiber 155M Bw, O Zps
F-SM-MM-02 | P6-FSMMM02OZ
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

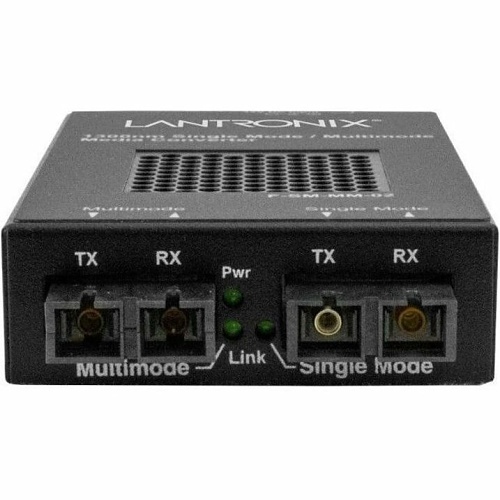

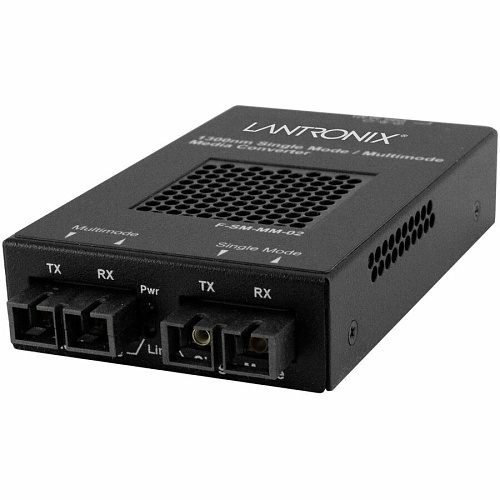

The F-SM-MM-02 fiber to fiber stand-alone media converter extends distance up to 20 km with network protocols that use 1300nm wavelength for fiber optic transmission. In fact, distances can be extended in any networking protocol between 100 Mbps and 155 Mbps.
Main Features
- Link Pass Through
- Automatic Link Restoration
General Information
Name: Lantronix F-SM-MM-02-OZ Multi SM Fiber 155M Bw, O Zps
Category: Lantronix, Data Comm & Networking, Media Converters & Transceivers, Media Converters
UPC Code: 648177001439
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P6-FSMMM02OZ Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number FSMMM02OZ Maximum Distance 12.43 Mile Packaged Quantity 2 Product Model F-SM-MM-02 Product Name Stand-alone Fiber to Fiber Media Converter Product Series F-SM-MM-02 Product Type Transceiver/Media Converter Weight 2lb
Fiber Optic Mode Multimode, Single-mode Media Type Supported Optical Fiber Power Consumption 3.1W
Number of Ports 2 Number of SC Ports 2
Depth 4.7" Form Factor DIN Rail Mount, Standalone, Wall Mount Height 1" Width 3"
Power Source AC, DC
Limited Warranty Lifetime
Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Package Contents Stand-alone Fiber to Fiber Media Converter Power Supply (Australia)
