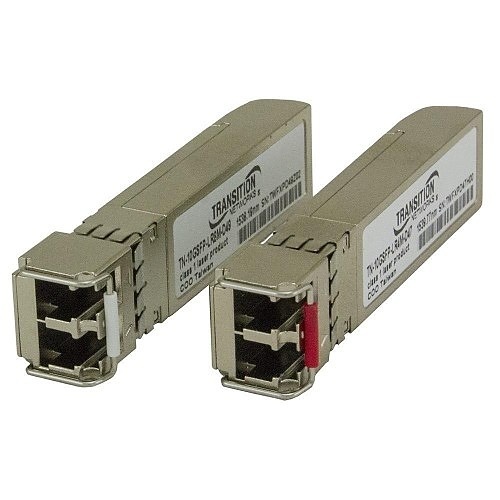

Lantronix TN-10GSFP-LR8M-D39 SFP Module Transceiver, SFP+ 1000BASE-ZX/10GBASE-ZR, 1G/10
TN-10GSFP-LR8M-D|P6-GFPR8M39
Lantronix TN-10GSFP-LR8M-D39 SFP Module Transceiver, SFP+ 1000BASE-ZX/10GBASE-ZR, 1G/10
TN-10GSFP-LR8M-D|P6-GFPR8M39
Lantronix
Lantronix TN-10GSFP-LR8M-D39 SFP Module Transceiver, SFP+ 1000BASE-ZX/10GBASE-ZR, 1G/10
TN-10GSFP-LR8M-D | P6-GFPR8M39
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
10G Base-ZR/1000Base-ZX, SFP+ with DMI single mode (LC) 1546.12nm 193.90THZ Link Budget- 22.0 dB.
Main Features
- SFP+ Optical Transceiver with duplex LC connector
- 1G/10G Small Form-Factor Pluggable (SFP+) MSA compliant
- Compliant with 10GBase-ER/ZR
- Compliant with 1000Base-LX/ZX
- SFF-8472 Digital Diagnostic Function (DMI)
- SFF-8431 and SFF-8432 Compliant
- Maximum Link Length of 80KM
- Single +3.3 V Power Supply
- Lower power dissipation <1.5 Watts
- RoHS Compliant
General Information
Name: Lantronix TN-10GSFP-LR8M-D39 SFP Module Transceiver, SFP+ 1000BASE-ZX/10GBASE-ZR, 1G/10
Category: Lantronix, Data Comm & Networking, Media Converters & Transceivers, SFP Modules
UPC Code: 783384252295
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P6-GFPR8M39 Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number TN10GSFPLR8MD39 Maximum Distance 262467.19' Product Model TN-10GSFP-LR8M-D Product Name TN-10GSFP-LRxM-Dxx SFP+ Module Product Series TN-10GSFP-LRxM-Dxx Product Type SFP+
Fiber Optic Mode Single-mode Media Type Supported Optical Fiber
Network Technology 1000Base-ZX, 10GBase-DWDM, 10GBase-ZR
Ethernet Technology 10 Gigabit Ethernet
Depth 2.2" Form Factor Plug-in Module Height 0.3" Width 0.5"
Input Voltage 3.3V
Limited Warranty Lifetime
Compatibility MSA Compliant Country of Origin TW Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes
