Image of P6-ION2ADJP
Lantronix

Lantronix ION002-AD-JP 2-Slot Chassis, Dual Input Power, Black

ION002-AD-JP|P6-ION2ADJP
Lantronix

Lantronix ION002-AD-JP 2-Slot Chassis, Dual Input Power, Black

ION002-AD-JP|P6-ION2ADJP

Sign In for Dealer Pricing

Become an ADI Customer
Image of P6-ION2ADJP
Lantronix

Lantronix ION002-AD-JP 2-Slot Chassis, Dual Input Power, Black

ION002-AD-JP | P6-ION2ADJP

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

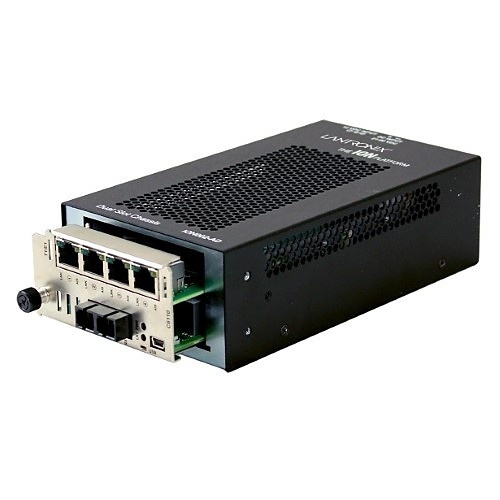

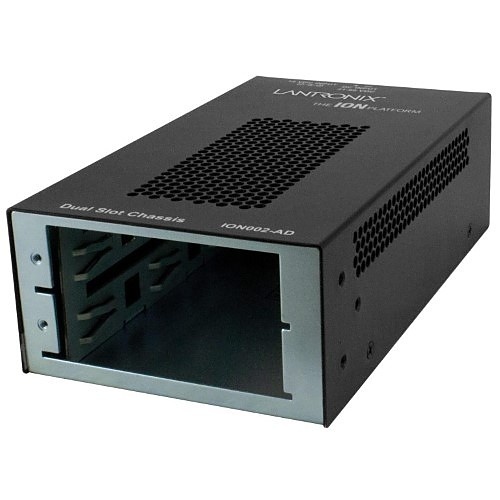

The ION002-AD is a 2-slot ION chassis that is design for network edge deployments, providing a mounting method for 1 double-wide slide-in card or up to 2 single-wide ION slide-in cards. This chassis included 2 power input options to choose from, either AC though the barrel connector or DC through the 2-pin terminal block. The ION002-AD allows 1 or 2 ION slide-in cards to be deployed as stand-alone units.

Main Features

  • Desktop installation
  • Supports WMBP wall mount brackets
  • Unmanaged Chassis
  • Supports any ION slide-in card that consume 6 Watts or less of power (C4120-1048 is not supported, C4221-4848 is not supported)
  • Fan-less design
  • External AC power
  • DC power input is an option on the 2 slot chassis
  • Support IP addressable managed ION slide-in cards

General Information

Name: Lantronix ION002-AD-JP 2-Slot Chassis, Dual Input Power, Black
Category: Lantronix, Data Comm & Networking, Media Converters & Transceivers, Media Converters
UPC Code: 648177046393
Country of Origin: . Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
Manufacturer Brochure
