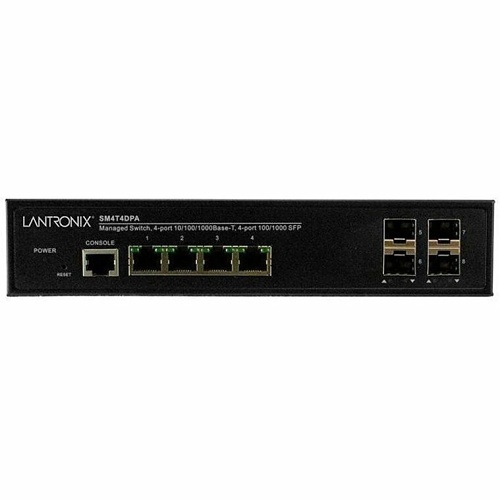

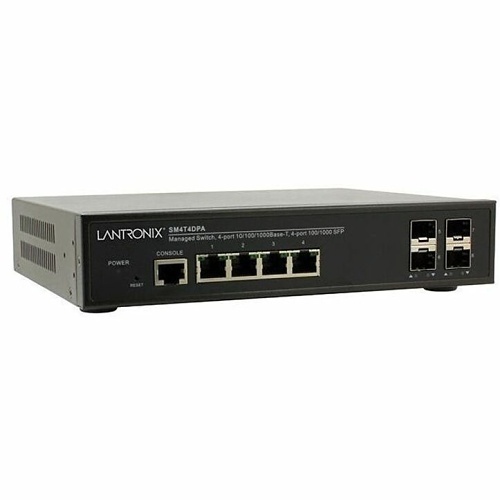

Lantronix SM4T4DPA-SA Managed Switch, 4-Port 10/100/1000B-T+4-Port100/1
SM4T4DPA-SA|P6-M4T4DPAA
Lantronix SM4T4DPA-SA Managed Switch, 4-Port 10/100/1000B-T+4-Port100/1
SM4T4DPA-SA|P6-M4T4DPAA
Lantronix
Lantronix SM4T4DPA-SA Managed Switch, 4-Port 10/100/1000B-T+4-Port100/1
SM4T4DPA-SA | P6-M4T4DPAA
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Managed Layer 2 Gigabit Ethernet Switch
(4) 10/100/1000Base-T Ports + (4) 100/1000Base-X SFP Slots
This switch is a high performance Layer 2 managed switch with (4) 10/100/1000Base-T copper ports and (4) dual speed 100/1000Base-X SFP slots.
Main Features
- Supports Jumbo Frame up to 9K bytes
- Authentication - RADIUS IEEE 802.1X, TACACS+
- Security - Supports SSH/SSL
- Port based or tagged (IEEE 802.1Q) VLAN, QinQ double tag VLAN, Guest VLAN
- Bandwidth Allocation Ingress and Egress
- DHCP Snooping including option 82
- IP-MAC binding for security
- ACL based on Ethernet Type / ARP / IPv4 for packets permit or deny, rate limitation and port copy
- LLDP (Link Layer Discovery Protocol)
- SYSLOG for device management
General Information
Name: Lantronix SM4T4DPA-SA Managed Switch, 4-Port 10/100/1000B-T+4-Port100/1
Category: Lantronix, Data Comm & Networking, Hubs, Routers & Switches, Network Switches
UPC Code: 783384251120
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P6-M4T4DPAA Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number SM4T4DPASA Product Model SM4T4DPA-SA Product Name SM4T4DPA Ethernet Switch Product Series SM4T4DPA Product Type Ethernet Switch Weight 3.85lb
Media Type Supported Optical Fiber, Twisted Pair
Expansion Slot Type SFP Number of SFP Slots 4 Number of SFP+ Slots 4 Number of Total Expansion Slots 4 Shared SFP Slot No
Modular Yes Network (RJ-45) Yes Total Number of Network Ports 4
Manageable Yes
Network Technology 10/100/1000Base-TX, 100/1000Base-FX
Ethernet Technology Gigabit Ethernet Layer Supported 2 Networking Standards IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Depth 6.3" Form Factor Rack-mountable, Wall Mountable Height 1.7" Width 8.7"
Input Voltage 120V AC, 230V AC Power Source AC
Limited Warranty Lifetime
Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Package Contents SM4T4DPA Ethernet SwitchPower cord South Africa
