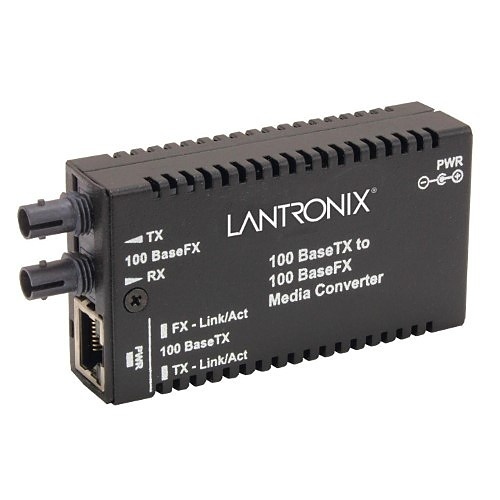

Lantronix M/E-TX-FX-01-EU Mini 100BaseTX to 100BaseFX ST MM Media Converter, 2km, 3.3V, EU
M/E-TX-FX-01-EU|P6-METXFX1EU
Lantronix M/E-TX-FX-01-EU Mini 100BaseTX to 100BaseFX ST MM Media Converter, 2km, 3.3V, EU
M/E-TX-FX-01-EU|P6-METXFX1EU
Lantronix
Lantronix M/E-TX-FX-01-EU Mini 100BaseTX to 100BaseFX ST MM Media Converter, 2km, 3.3V, EU
M/E-TX-FX-01-EU | P6-METXFX1EU
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The M/E-TX Series is a Fast Ethernet stand-alone Mini media converter that provides cost-effective media conversion between 100Base-TX ports and 100Base-FX ports. with its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential.
Main Features
- Fiber integration used in pairs or as a single unit, this mini media converter will ease the integration of fiber optic cabling into copper-rich fast Ethernet environments
- Extend Network Distance as fiber supports the transmission of Fast Ethernet data over much longer distances than possible twisted pair
- Low-Latency Layer 1 Design, this mini converter will retransmit Fast Ethernet signals without any store-and–forward packet inspection delays found in other Layer 2 devices
- Small Size is ideal for conversion locations where available space is limited, 65% smaller than standard media converter
- Unit and port LEDs allow for quick status information
- Auto-Negotiation
- Auto-MDI / MDIX
General Information
Name: Lantronix M/E-TX-FX-01-EU Mini 100BaseTX to 100BaseFX ST MM Media Converter, 2km, 3.3V, EU
Category: Lantronix, Data Comm & Networking, Media Converters & Transceivers, Media Converters
UPC Code: 648177039937
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P6-METXFX1EU Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number M/E-TX-FX-01-EU Maximum Distance 1.24 Mile Packaged Quantity 2 Product Model M/E-TX-FX-01-EU Product Name Mini Fast Ethernet Media Converter Product Series M/E-TX Product Type Media Converter Weight 2lb
Fiber Optic Mode Multimode Media Type Supported Optical Fiber, Twisted Pair Power Consumption 2.60W
Number of Network (RJ-45) Ports 1 Number of Ports 2 Number of ST Ports 1
Fiber Optic Wavelength 1300 nm Network Technology 100Base-FX, 100Base-TX
Depth 3.3" Height 0.85" Width 1.8"
Power Source AC/DC
Limited Warranty Lifetime
Environmental Certification cUL, UL Environmentally Friendly Yes Package Contents M/E-TX-FX-01 Transceiver/Media Converter, Power Supply - Europe
