Lantronix M/E-TX-FX-01(SM)-NA Mini 100BaseTX to 100BaseFX SC SM 20km 3.3V Media Converter
M/E-TX-FX-01(SM)|P6-METXFXMNA
Lantronix M/E-TX-FX-01(SM)-NA Mini 100BaseTX to 100BaseFX SC SM 20km 3.3V Media Converter
M/E-TX-FX-01(SM)|P6-METXFXMNA
Lantronix
Lantronix M/E-TX-FX-01(SM)-NA Mini 100BaseTX to 100BaseFX SC SM 20km 3.3V Media Converter
M/E-TX-FX-01(SM) | P6-METXFXMNA
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

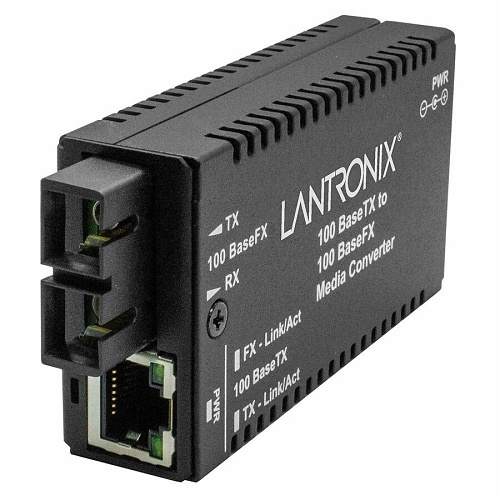

Mini Fast Ethernet Media Converter
100Base-TX to 100Base-FX
The M/E-TX Series is a Fast Ethernet stand-alone Mini media converter that provides cost effective media conversion between 100Base-TX ports and 100Base-FX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential.
Main Features
- For efficient encoding/decoding of data into light pulses and then sending them to the other end as electrical signals for a dependable photoelectric conversion
- with Twisted Pair cable, get the desired data transfer rate up to a required distance
- Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
- With 10/100Base-TX technology get up to 100Mbps data transfer rate over optical fiber cable
- No hassle of internal installation, install externally
General Information
Name: Lantronix M/E-TX-FX-01(SM)-NA Mini 100BaseTX to 100BaseFX SC SM 20km 3.3V Media Converter
Category: Lantronix, Data Comm & Networking, Media Converters & Transceivers, Media Converters
UPC Code: 648177037728
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P6-METXFXMNA Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number METXFX01SMNA Maximum Distance 12.43 Mile Packaged Quantity 2 Product Model M/E-TX-FX-01(SM) Product Name M/E-TX-FX-01(SM) Transceiver/Media Converter Product Series M/E-TX Product Type Transceiver/Media Converter Weight 2lb
Fiber Optic Mode Single-mode Media Type Supported Optical Fiber, Twisted Pair Power Consumption 2.60W
Network (RJ-45) Yes Number of Network (RJ-45) Ports 1 Number of Ports 2 Number of SC Ports 1
Fiber Optic Wavelength 1310 nm Network Technology 100Base-FX, 100Base-TX
Ethernet Technology 10 Gigabit Ethernet
Depth 3.3" Form Factor DIN Rail Mount, Rack Mount, Standalone, Wall Mount Height 0.9" Width 1.8"
Input Voltage 12V DC Power Source AC/DC
Mount Type DIN Rail Mount, Rack Mount, Standalone, Wall Mount
Limited Warranty Lifetime
Country of Origin TW Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Package Contents M/E-TX-FX-01(SM) Transceiver/Media ConverterPower Supply - North America
