Lantronix NM2-GXE-2230-LC-201 M.2 Network Interface Card and Multi-Mode LC Media Converter, 30mm
Lantronix NM2-GXE-2230-LC-201 M.2 Network Interface Card and Multi-Mode LC Media Converter, 30mm
Lantronix NM2-GXE-2230-LC-201 M.2 Network Interface Card and Multi-Mode LC Media Converter, 30mm
NM2-GXE-2230-LC-201 | P6-NGX223C2
Please sign in to view pricing and availability and to add to cart.
Product Overview

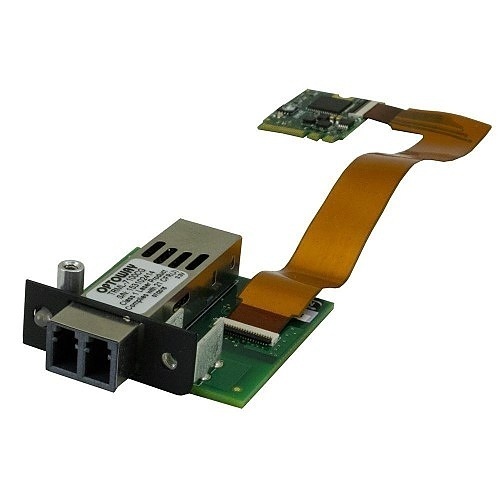

Lantronix M.2 Gigabit Ethernet Fiber Network Interface Card (NIC) provides a fiber optic interface for the Dell OptiPlex 3060/5060/7060/7070 and 7080/7090 Micro PCs. The NM2-GXE-2230-xx-201 Series consists of a M.2 NIC that installs into the OptiPlex Micro PC's M.2 "A or E keyed" interface, a fiber optic adapter that installs into the OptiPlex Micro PC's Option port, and a 20-pin Flat Flex Cable (FFC) that connects the NIC to the fiber adapter. The fiber optic adapter is available with either a 1000Base-SX LC connector or an open SFP (SFP module sold separately). Please note the variation in versions within Ordering Information.
Main Features
- PCI Express M.2 compliant
- A + E Keyed M.2 interface
- Full duplex
- Flow control
- Wake on Lan (WOL)
- Smart Load Balancing (SLB)
- TCP Segmentation Offload (TSO)
- Message Signaled Interrupts (MSI)
- Extended Message-Signaled Interrupts (MSI-X)
- LACP Support (Teaming)
General Information
Specifications
ADI Part Number P6-NGX223C2 Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number NM2-GXE-2230-LC-201 Product Model NM2-GXE-2230-LC-201 Product Name M.2 Gigabit Ethernet Fiber Network Interface Card for Dell OptiPlex Product Series NM2-GXE-2230-xx-201 Product Type Gigabit Ethernet Card Weight 1.60oz
Fiber Optic Mode Multimode Media Type Supported Optical Fiber
Network Technology 1000Base-SX
Depth 1.18" Form Factor Plug-in Card Height 0.12" Width 0.87"
Limited Warranty Lifetime
Environmentally Friendly Yes
