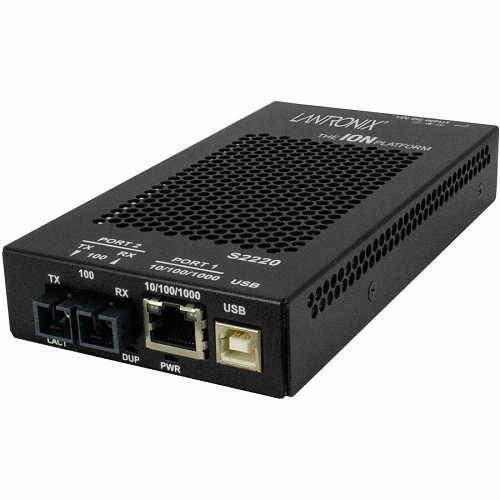

Lantronix S2220-1014-OZ Managed Ethernet Switches 10/100/1000BASET tO 100BASELX10, SC Single Mode
Lantronix S2220-1014-OZ Managed Ethernet Switches 10/100/1000BASET tO 100BASELX10, SC Single Mode
Lantronix S2220-1014-OZ Managed Ethernet Switches 10/100/1000BASET tO 100BASELX10, SC Single Mode
S2220-1014 | P6-S222114OZ
Please sign in to view pricing and availability and to add to cart.
Product Overview
Stand-alone Fast Ethernet Remotely Managed NID
10/100/1000Base-T to 100Base-FX with OAM/IP-Based Management
The ION S2220 is a stand-alone managed Network Interface Device (NID) that provides an interface between 10/100/1000Base-T ports and 100Base-FX ports, allowing users to manage their links while integrating fiber optic cabling into 10/100/1000 copper environments. As a remotely managed device, the S2220 can be managed individually via an IP address or it can be managed in-band, over the fiber when linked to a C2220 card installed in a managed ION chassis. With advanced features like IEEE 802.3ah Link OAM, VLAN, QoS, SSH/SSL, jumbo frame support, and bandwidth allocation, the S2220 offers a variety of methods for the secure delivery of Ethernet services in business and mobile backhaul applications.
Main Features
- MEF 9, 14 and 21 certified
- IEEE 802.3ah Link OAM
- 10K Jumbo Frame Support
- Two selectable Remote Management modes: IP-Based Remote Management | In-Band (remote device managed by local peer)
- Auto-MDI/MDIX
- Auto-Negotiation
- Pause
- Transparent Link Pass Through
- Far-End-Fault (FEF)
- Remote Loopback
General Information
Specifications
ADI Part Number P6-S222114OZ Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number S22201014OZ Maximum Distance 6.21 Mile Packaged Quantity 2 Product Line ION Product Model S2220-1014 Product Name S2220-1014 Transceiver/Media Converter Product Series S2220 Product Type Transceiver/Media Converter Weight 2lb
Fiber Optic Mode Single-mode Media Type Supported Optical Fiber, Twisted Pair
Network (RJ-45) Yes Number of Network (RJ-45) Ports 1 Number of Ports 2 Number of SC Ports 1
Fiber Optic Wavelength 1310 nm Network Technology 10/100/1000Base-T, 100Base-LX
Ethernet Technology Fast Ethernet, Gigabit Ethernet
Depth 6.5" Form Factor DIN Rail Mount, Shelf Mount, Standalone, Wall Mount Height 1" Width 3.3"
Input Voltage 120V AC, 230V AC Power Source Power Supply
Limited Warranty Lifetime
Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Package Contents S2220-1014 Transceiver/Media ConverterPower Supply - Australia
