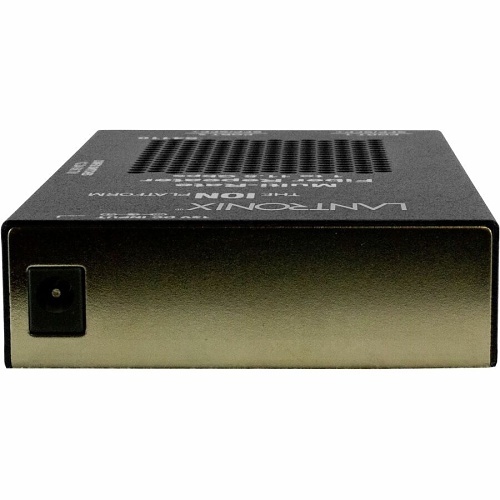

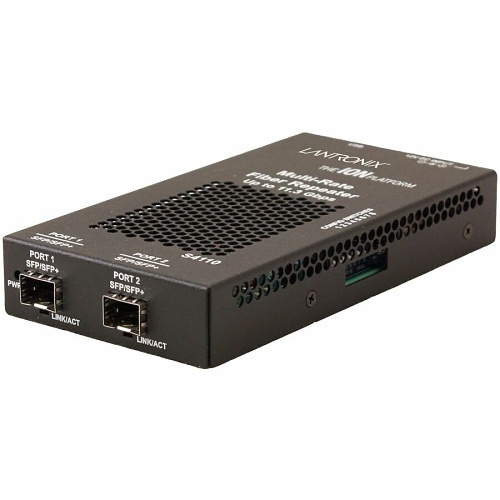

Lantronix S4110-4848-OZ Multi Rate Fiber to REP Repeater, OZ Power
Lantronix S4110-4848-OZ Multi Rate Fiber to REP Repeater, OZ Power
Lantronix S4110-4848-OZ Multi Rate Fiber to REP Repeater, OZ Power
S4110-4848 | P6-S44848OZ
Please sign in to view pricing and availability and to add to cart.
Product Overview
Stand-alone Fiber to Fiber Media Converter
SFP+ to SFP+ for Data Rates from 1 Gbps to 11.5 Gbps
The S4110 is a stand-alone fiber to fiber media converter. It is protocol independent and supports data rates from 1Gbps to 11.5Gbps through two open SFP+ slots. This allows network managers to customize the S4110 with a pair of SFP+ modules to meet their network requirements. The open SFP+ ports support a wide variety of Transition Networks 10GE SFP+ fiber modules. This any-rate to same-rate converter can be used to perform reliable and cost-effective single mode to multimode conversion or it can be used to provide wavelength conversion in CWDM applications.
Main Features
- Fiber to fiber repeater
- Supports data rates from 1 Gbps to 11.5 Gbps
- Support any-rate to same-rate
- Protocol Transparent, supports: Ethernet: 10Gig LAN, 10Gig Wan, 1Gig LAN | Fiber Channel: 10, 8, 4, 2, 1Gig | SONET/SDN OC-192, OC-48
- SFP to SFP or SFP+ to SFP+
- Provides conversion between different types of fiber
- Supported transmission distance based on the SFP modules and fiber type used
- Supports 3R (Reamplify, Reshape, and Retime) signal regeneration
- No frame size limitations
- Use as a fiber mode converter
General Information
Specifications
ADI Part Number P6-S44848OZ Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number S41104848OZ Packaged Quantity 2 Product Model S4110-4848 Product Name S4110-4848 Transceiver/Media Converter Product Series S4110 Product Type Transceiver/Media Converter Weight 2lb
Media Type Supported Optical Fiber Power Consumption 4.20W
Expansion Slot Type SFP+ Number of SFP+ Slots 2 Number of Total Expansion Slots 2
Network Technology 1000Base-X
Ethernet Technology 10 Gigabit Ethernet
Depth 6.5" Form Factor DIN Rail Mount, Rack Mount, Shelf Mount, Standalone, Wall Mount Height 1" Width 3.3"
Input Voltage 120V AC, 230V AC Power Source AC, DC
Limited Warranty Lifetime
Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Package Contents S4110-4848 Transceiver/Media ConverterPower Supply - Australia
