S6110-1040 | P6-S61114UKC
Please sign in to view pricing and availability and to add to cart.
Product Overview
Stand-alone DS1 - T1/E1/J1 Network Interface Device
4 x DS1 - T1/E1/J1 over Fiber

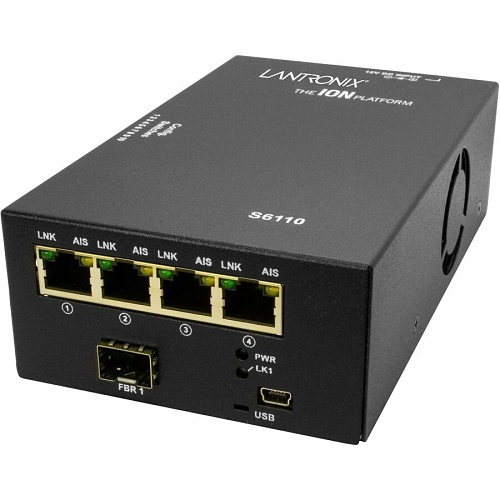

The ION S6110 is a managed stand-alone DS1 - T1/E1/J1 media converter mux that provides a solution for those users that need to extend multiple DS1 - T1/E1/J1 connections over fiber. The S6110 includes (4) RJ-48 ports and (1) fiber port. The device offers support for a variety of fiber types, distances, and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure.
The S6110 converter must be used in pairs. Management of the stand-alone converter is supported, in-band, over the fiber, when the remote S6110 is linked to a C6110 card installed in a managed ION chassis.
Main Features
- (4) RJ-48 copper interfaces
- (1) fiber interface (SFP)
- Loopback via test set
- Local and remote loopbacks
- LEDs for device status and troubleshooting
- Settings for line code, line build out, loopbacks and Alarm Indication Signal (AIS)
- Access to complete status and configuration on local and remote device
- Remote firmware upgrade
- Remote management
- Extended operating temperature
General Information
Specifications
ADI Part Number P6-S61114UKC Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number S61101040UK Maximum Distance 4921.26' Packaged Quantity 2 Product Line ION Product Model S6110-1040 Product Name S6110-1040 Transceiver/Media Converter Product Series S6110 Product Type Transceiver/Media Converter Weight 2lb
Media Type Supported Optical Fiber, Twisted Pair Power Consumption 6W
Expansion Slot Type SFP Number of SFP Slots 1 Number of SFP+ Slots 1 Number of Total Expansion Slots 1
Network Technology 100Base-X/OC-3, T1/E1/J1
Depth 6.5" Form Factor Standalone, Wall Mount Height 1.8" Width 3.7"
Input Voltage 12V DC Power Source Power Supply
Limited Warranty Lifetime
Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Package Contents S6110-1040 Transceiver/Media ConverterPower Supply - United Kingdom
