Lantronix S6210-3014-LA DS3-T3/ES Coaxial to Fiber, 20-Pack, 20km, SC Connector
Lantronix S6210-3014-LA DS3-T3/ES Coaxial to Fiber, 20-Pack, 20km, SC Connector
Lantronix S6210-3014-LA DS3-T3/ES Coaxial to Fiber, 20-Pack, 20km, SC Connector
S6210-3014 | P6-S621314LA
Please sign in to view pricing and availability and to add to cart.
Product Overview

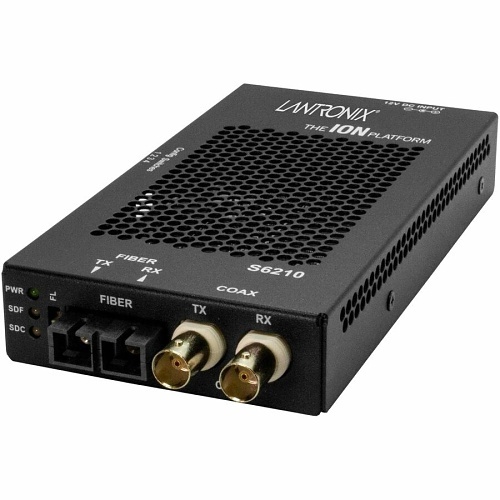

Stand-alone DS3-T3/E3 Network Interface Device
DS3 - T3/E3 Coax over Fiber
The ION S6210 is a managed stand-alone media converter that provides a solution for those users that need to extend DS3-T3/E3 connections over fiber. The S6210 is available in versions that support fixed fiber connectors as well as SFP fiber modules offering support for a variety of fiber types, distances, and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure.
The S6210 DS3-T3/E3 converters must be used in pairs. Management of the stand-alone converter is supported, in-band, over the fiber, when the remote S6210 is linked to a C6210 card installed in a managed ION chassis.
Main Features
- AIS (Alarm Indication Signal)
- Coax Line Build Out
- Switch selectable for DS3/T3 or E3
- Remote firmware upgrade
- Loopback - Coax and Fiber
- LEDs for immediate visual status
- Supports dual or single fiber
- Supports multimode and single mode fiber at a variety of distances
- Supports CWDM SFPs
- SNMP management when used with ION chassis and management module
General Information
Specifications
ADI Part Number P6-S621314LA Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number S62103014LA Maximum Distance 12.43 Mile Packaged Quantity 2 Product Line ION Product Model S6210-3014 Product Name S6210-3014 Transceiver/Media Converter Product Series S6210 Product Type Transceiver/Media Converter Weight 2lb
Fiber Optic Mode Single-mode Media Type Supported Coaxial, Optical Fiber Power Consumption 2.40W
Number of Ports 3 Number of SC Ports 1
Depth 6.5" Form Factor DIN Rail Mount, Rack Mount, Shelf Mount, Standalone, Wall Mount Height 1" Width 3.5"
Input Voltage 120V AC, 230V AC Power Source Power Supply
Limited Warranty Lifetime
Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Package Contents S6210-3014 Transceiver/Media ConverterPower Supply - Latin America
