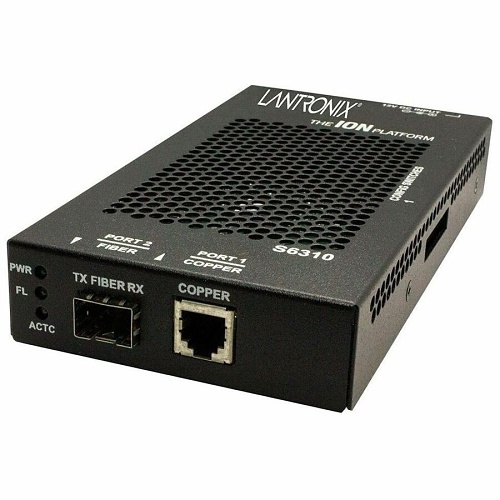

Lantronix S6310-3340-LA POTS Copper to Fiber Media Converter, ION SA, SFP, Latin America Power Cord
Lantronix S6310-3340-LA POTS Copper to Fiber Media Converter, ION SA, SFP, Latin America Power Cord
Lantronix S6310-3340-LA POTS Copper to Fiber Media Converter, ION SA, SFP, Latin America Power Cord
S6310-3340 | P6-S631334LA
Please sign in to view pricing and availability and to add to cart.
Product Overview
The S6310-3340 is a stand-alone media converter that provides an interface between a twisted pair RJ-11 port and a fiber port, allowing users to connect central-office voice grade signals to distant Plain Old Telephone equipment (POTS) utilizing standard telephone signaling. Two units are required to implement an end to end system. The first unit connects to a telephone line or PBX and is configured to act as a telephone (FXO Mode) and has the ability to detect ringing voltages. The second unit is the reciprocal unit and is configured to have the ability to act as a Central Office and connects to a telephone device (FXS Mode).
Together, the modules allow legacy analog phone lines to be extended over fiber for both permanent installations as well as temporary job-site installations.
Main Features
- Audio transmission of voice grade signals
- Supports ringing at distant end
- Supports Caller ID
- Configurable worldwide country formats
- Must be deployed in pairs: ION chassis card and stand-alone unit | ION chassis card and ION chassis card | Stand-alone unit and stand-alone unit
- Single product configurable to either FXO mode or FXS mode
- Automatic Ring Down supported when both converters are configured to FXS Mode
- SFP based product: Uses Gigabit Ethernet SFP Modules | Lantronix offers a wide variety of SFP modules to support multimode or singlemode fiber, as well as dual or single strand fiber installations
- Supports in-band management of remote stand-alone unit when linked to a POTS slide-in-card installed in a managed ION chassis
- Electrical interface is provided through an RJ-11 female connector
General Information
Specifications
ADI Part Number P6-S631334LA Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number S63103340LA Maximum Distance 3.11 Mile Packaged Quantity 2 Product Line ION Product Model S6310-3340 Product Name S6310-3340 Transceiver/Media Converter Product Series S6310 Product Type Transceiver/Media Converter Weight 2lb
Fiber Optic Mode Multimode, Single-mode Media Type Supported Optical Fiber, Twisted Pair Power Consumption 2W
Expansion Slot Type SFP Number of SFP Slots 1 Number of SFP+ Slots 1 Number of Total Expansion Slots 1
Depth 6.5" Form Factor Rack Mount, Standalone Height 1" Width 3.3"
Input Voltage 12V DC Power Source AC, DC
Limited Warranty Lifetime
Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Package Contents S6310-3340 Transceiver/Media ConverterPower Supply - Latin America
