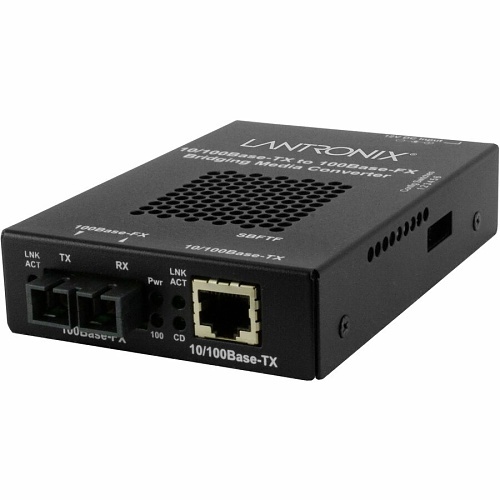

Lantronix SBFTF1013-105-ARSBFTF Series Media Converter 10/100BTX to 100BFX, 1x9, SC MM, 3.3V, AR
SBFTF1013-105|P6-SBFTF35AR
Lantronix SBFTF1013-105-ARSBFTF Series Media Converter 10/100BTX to 100BFX, 1x9, SC MM, 3.3V, AR
SBFTF1013-105|P6-SBFTF35AR
Lantronix
Lantronix SBFTF1013-105-ARSBFTF Series Media Converter 10/100BTX to 100BFX, 1x9, SC MM, 3.3V, AR
SBFTF1013-105 | P6-SBFTF35AR
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Stand-alone Fast Ethernet Media and Rate Converter
10/100Base-TX to 100Base-FX
The SBFTF Series is a that provides an interface between 10/100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into 10/100 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10Base-T copper devices to connect to 100Base-FX fiber.
Main Features
- Auto-Negotiation
- Auto-MDI/MDIX
- Link Pass Through
- Far-End-Fault (FEF) Detection
- Automatic Link Restoration Extend network distance up to 120km
- Bridging devices will provide conversion and integration solutions for half and full-duplex environments
- 10 Mbps or 100 Mbps on TP port
- Half or full-duplex on all ports including fiber
General Information
Name: Lantronix SBFTF1013-105-ARSBFTF Series Media Converter 10/100BTX to 100BFX, 1x9, SC MM, 3.3V, AR
Category: Lantronix, Data Comm & Networking, Media Converters & Transceivers, Media Converters
UPC Code: 783384248069
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P6-SBFTF35AR Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number SBFTF1013105AR Maximum Distance 1.24 Mile Packaged Quantity 2 Product Model SBFTF1013-105 Product Name SBFTF1013-105 Transceiver/Media Converter Product Series SBFTF Product Type Transceiver/Media Converter Weight 2lb
Fiber Optic Mode Multimode Media Type Supported Optical Fiber, Twisted Pair
Network (RJ-45) Yes Number of Network (RJ-45) Ports 1 Number of Ports 2 Number of SC Ports 1
Fiber Optic Wavelength 1300 nm Network Technology 10/100Base-TX, 100Base-FX
Ethernet Technology Fast Ethernet
Depth 4.8" Form Factor DIN Rail Mount, Rack Mount, Shelf Mount, Standalone, Wall Mount Height 1" Width 3.3"
Input Voltage 12V DC Power Source AC, DC
Limited Warranty Lifetime
Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Package Contents SBFTF1013-105 Transceiver/Media ConverterPower Supply - Argentina
