SBFTF1010-130-BR | P6-SBFTF3BR
Please sign in to view pricing and availability and to add to cart.
Product Overview
Stand-alone Fault-Tolerant Redundant Link Protector
10/100Base-TX

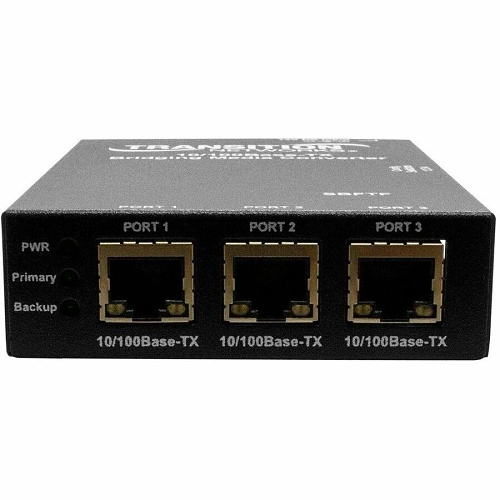

The SBFTF1010-130 Redundant Link Protector is a 10/100 Ethernet fault-tolerant transceiver that significantly reduces network down time by adding a new level of redundancy to 10/100 Ethernet connections. The Redundant Transceiver has three ports: one for the critical (main) device, one for the default (primary) path to the critical device, and another (backup) for the backup path. It is a smart device that will not send any signal on a path that is inactive. If the primary path loses its link, then the transceiver will switch to the backup path in approximately 189 milliseconds.
When the primary path re-establishes its link, the Redundant Link Protector will automatically switch back to the primary path. Optional functionality, controlled via a dip switch, allows the unit to move from the fault-tolerant mode to a 3-port switch mode.
Main Features
- Fault-tolerant redundant connections
- Easy to install and use
- Supports half and full-duplex transmission
- Auto-MDI/MDIX
- Auto-Negotiation
- IEEE 802.3 compliant
- 9 diagnostic LEDs
- Optional 3-port switch mode
General Information
Specifications
ADI Part Number P6-SBFTF3BR Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number SBFTF1010130BR Maximum Distance 328.08' Product Model SBFTF1010-130 Product Name SBFTF1010-130 Transceiver/Media Converter Product Type Transceiver/Media Converter Weight 2lb
Media Type Supported Twisted Pair Power Consumption 2.40W
Network (RJ-45) Yes Number of Network (RJ-45) Ports 3 Number of Ports 3
Network Technology 10/100Base-TX
Ethernet Technology Fast Ethernet
Depth 4.8" Form Factor DIN Rail Mount, Rack Mount, Shelf Mount, Standalone, Wall Mount Height 1" Width 3.3"
Input Voltage 120V AC, 230V AC Power Source Power Supply
Mount Type DIN Rail Mount, Rack Mount, Shelf Mount, Standalone, Wall Mount
Limited Warranty Lifetime
Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Package Contents - SBFTF1010-130 Transceiver/Media Converter
- Power Supply - Brazil
TAA Compliant Yes
