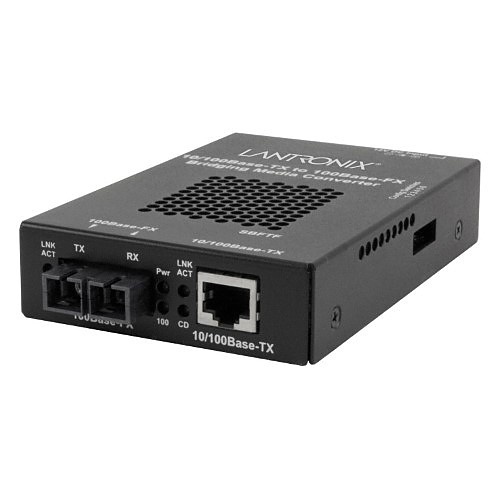

Lantronix SBFTF1014-105-EU SBFTF Series Media Converter 10/100BTX to 100BFX, 1x9, SC SM, 3.3V, EU
SBFTF1014-105|P6-SBFTF4503
Lantronix SBFTF1014-105-EU SBFTF Series Media Converter 10/100BTX to 100BFX, 1x9, SC SM, 3.3V, EU
SBFTF1014-105|P6-SBFTF4503
Lantronix
Lantronix SBFTF1014-105-EU SBFTF Series Media Converter 10/100BTX to 100BFX, 1x9, SC SM, 3.3V, EU
SBFTF1014-105 | P6-SBFTF4503
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The SBFTF Series is a that provides an interface between 10/100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into 10/100 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10Base-T copper devices to connect to 100Base-FX fiber.
Main Features
- Auto-Negotiation
- Auto-MDI/MDIX
- Link Pass Through
- Far-End-Fault (FEF) Detection
- Automatic Link Restoration Extend network distance up to 120km
- Bridging devices will provide conversion and integration solutions for half and full-duplex environments
- 10 Mbps or 100 Mbps on TP port
- Half or full-duplex on all ports including fiber
General Information
Name: Lantronix SBFTF1014-105-EU SBFTF Series Media Converter 10/100BTX to 100BFX, 1x9, SC SM, 3.3V, EU
Category: Lantronix, Data Comm & Networking, Media Converters & Transceivers, Media Converters
UPC Code: 648177030743
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P6-SBFTF4503 Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number SBFTF1014-105-EU Maximum Distance 12.43 Mile Packaged Quantity 2 Product Model SBFTF1014-105 Product Name Stand-alone Fast Ethernet Media and Rate Converter10/100Base-TX to 100Base-FX Product Series SBFTF Product Type Transceiver/Media Converter Weight 2lb
Fiber Optic Mode Single-mode Media Type Supported Optical Fiber
Number of Network (RJ-45) Ports 1 Number of Ports 2 Number of SC Ports 1
Fiber Optic Wavelength 1310 nm Network Technology 10/100Base-TX, 100Base-FX
Ethernet Technology Fast Ethernet
Depth 4.8" Height 1" Width 3.3"
Power Source AC, DC
Limited Warranty Lifetime
Environmental Certification CE Mark, FCC Class A, UL Listed Environmentally Friendly Yes Package Contents Power Supply - Europe, SBFTF1014-105 Transceiver/Media Converter
