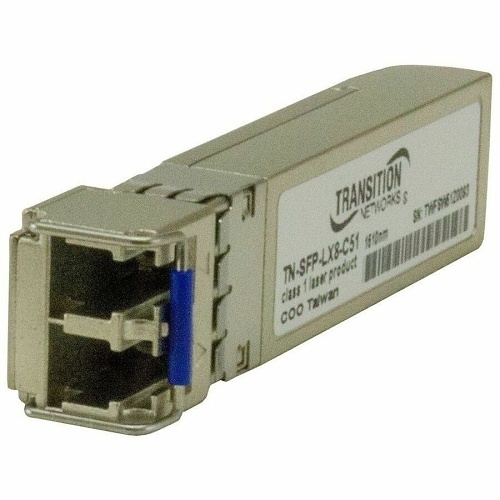

Lantronix TN-SFP-LX8-C51 MSA Compatible CWDM SFP Module, 1000Base-LX/Fiber Channel 1x Singlemode (LC) with DMI 1510nm, 80km
TN-SFP-LX8|P6-SFPLX8C51
Lantronix TN-SFP-LX8-C51 MSA Compatible CWDM SFP Module, 1000Base-LX/Fiber Channel 1x Singlemode (LC) with DMI 1510nm, 80km
TN-SFP-LX8|P6-SFPLX8C51
Lantronix
Lantronix TN-SFP-LX8-C51 MSA Compatible CWDM SFP Module, 1000Base-LX/Fiber Channel 1x Singlemode (LC) with DMI 1510nm, 80km
TN-SFP-LX8 | P6-SFPLX8C51
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
1000Base-LX/Fiber Channel 1x single mode (LC) with DMI 1510nm Link Budget- 24.0 dB.
Main Features
- Coarse Wavelength Division Multiplexing (CWDM) ITU Grid Compliant Wavelengths
- Hot-Pluggable SFP Footprint Duplex LC Optical Transceiver
- Digital Diagnostic Function (DMI)
- Compatible with SFP Multi-Sourcing Agreement (MSA)
- Compliant with Fiber Channel 1X SM-LC-L FC-PI
General Information
Name: Lantronix TN-SFP-LX8-C51 MSA Compatible CWDM SFP Module, 1000Base-LX/Fiber Channel 1x Singlemode (LC) with DMI 1510nm, 80km
Category: Lantronix, Data Comm & Networking, Media Converters & Transceivers, SFP Modules
UPC Code: 648177026982
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P6-SFPLX8C51 Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number TNSFPLX8C51 Maximum Distance 262467.19' Product Model TN-SFP-LX8 Product Name TN-SFP-LX8-Cxxx SFP (mini-GBIC) Module Product Series TN-SFP-LX8-Cxxx Product Type SFP (mini-GBIC)
Fiber Optic Mode Single-mode Media Type Supported Optical Fiber Power Consumption 0.66W
Network Technology 1000Base-CWDM, 1000Base-LX, Fiber Channel
Ethernet Technology 10 Gigabit Ethernet
Depth 2.2" Form Factor Hot-pluggable Height 0.3" Width 0.5"
Input Voltage 3.3V Plug/Connector Type LC
Limited Warranty Lifetime
Compatibility MSA Compliant Country of Origin TW Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes
