Lantronix SGETF1014-110-OZ SGETF Series Stand-Alone Gigabit Ethernet Media Converter, 1000Base-T (RJ-45) to 1000Base-LX, 1310nm, Singlemode SC South America Power Cord, 10km
SGETF1014-110|P6-SGETF420
Lantronix SGETF1014-110-OZ SGETF Series Stand-Alone Gigabit Ethernet Media Converter, 1000Base-T (RJ-45) to 1000Base-LX, 1310nm, Singlemode SC South America Power Cord, 10km
SGETF1014-110|P6-SGETF420
Lantronix
Lantronix SGETF1014-110-OZ SGETF Series Stand-Alone Gigabit Ethernet Media Converter, 1000Base-T (RJ-45) to 1000Base-LX, 1310nm, Singlemode SC South America Power Cord, 10km
SGETF1014-110 | P6-SGETF420
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

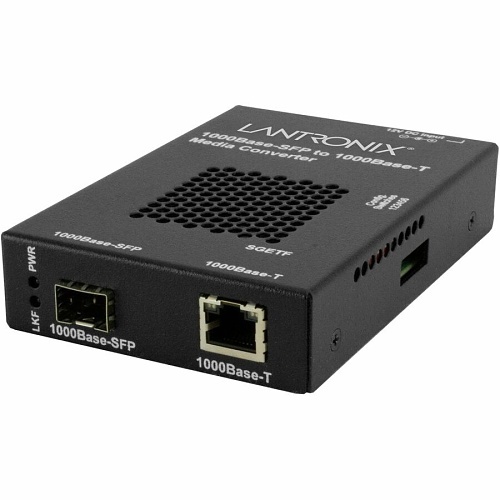

Stand-alone Gigabit Ethernet Media Converter
1000Base-T to 1000Base-SX/LX
The SGETF Series is a stand-alone media converter that provides an interface between 1000Base-T ports and 1000Base-SX/LX ports, allowing users to integrate fiber optic cabling into 1000Base-T copper environments. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential.
Main Features
- Auto-MDI/MDIX
- Copper & Fiber Auto-Negotiation
- Transparent Link Pass Through
- Automatic Link Restoration
- Pause
- Remote Fault Detect
General Information
Name: Lantronix SGETF1014-110-OZ SGETF Series Stand-Alone Gigabit Ethernet Media Converter, 1000Base-T (RJ-45) to 1000Base-LX, 1310nm, Singlemode SC South America Power Cord, 10km
Category: Lantronix, Data Comm & Networking, Media Converters & Transceivers, Media Converters
UPC Code: 783384248519
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P6-SGETF420 Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number SGETF1014110OZ Maximum Distance 6.21 Mile Packaged Quantity 2 Product Model SGETF1014-110 Product Name SGETF1014-110 Transceiver/Media Converter Product Series SGETF Product Type Transceiver/Media Converter Weight 2lb
Fiber Optic Mode Single-mode Media Type Supported Optical Fiber, Twisted Pair Power Consumption 5.40W
Network (RJ-45) Yes Number of Network (RJ-45) Ports 1 Number of Ports 2 Number of SC Ports 1
Fiber Optic Wavelength 1310 nm Network Technology 1000Base-LX, 1000Base-T
Ethernet Technology Gigabit Ethernet
Depth 4.8" Form Factor DIN Rail Mount, Rack Mount, Shelf Mount, Standalone, Wall Mount Height 1" Width 3.3"
Input Voltage 120V AC, 230V AC Power Source AC, DC
Limited Warranty Lifetime
Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Package Contents SGETF1014-110 Transceiver/Media ConverterPower Supply - Australia
