Lantronix SGFEB1040-230-JP Media Converter 10/100/1000BT to 1000BX, Dual SFP
SGFEB1040-230-JP|P6-SGFEB2322
Lantronix SGFEB1040-230-JP Media Converter 10/100/1000BT to 1000BX, Dual SFP
SGFEB1040-230-JP|P6-SGFEB2322
Lantronix
Lantronix SGFEB1040-230-JP Media Converter 10/100/1000BT to 1000BX, Dual SFP
SGFEB1040-230-JP | P6-SGFEB2322
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

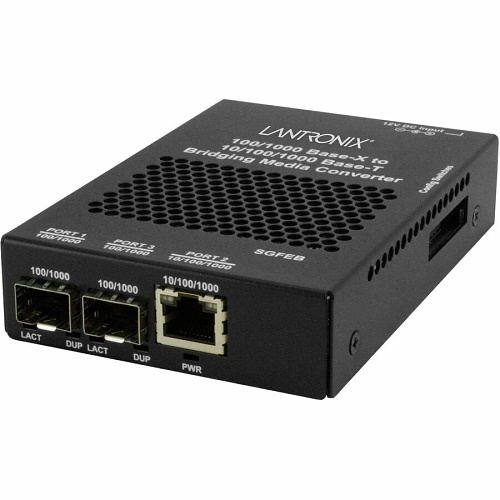

Stand-alone Gigabit Ethernet Media and Rate Converter
10/100/1000Base-T to 1000Base-SX/LX
The SGFEB Series is a stand-alone media converter that provides an interface between 10/100/1000Base-T ports and 1000Base-SX/LX ports, allowing users to integrate fiber optic cabling into 10/100/1000 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber.
Main Features
- Auto Negotiation
- Auto-MDI/MDIX
- Link Pass Through
- Far End Fault (FEF)
- Remote Fault Detect
- Provides rate conversion while also increasing transmission distances
- Supports multimode or single mode fiber
- Versions available with fixed SC or LC optics, as well as modular SFP optics
- Long haul transmission distances are supported with a variety of SFP modules
- SFP ports support dual speeds: 100/1000/SGMII
General Information
Name: Lantronix SGFEB1040-230-JP Media Converter 10/100/1000BT to 1000BX, Dual SFP
Category: Lantronix, Data Comm & Networking, Media Converters & Transceivers, Media Converters
UPC Code: 783384249158
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P6-SGFEB2322 Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number SGFEB1040230JP Maximum Distance 328.08' Packaged Quantity 2 Product Model SGFEB1040-230 Product Name SGFEB1040-230 Transceiver/Media Converter Product Series SGFEB Product Type Transceiver/Media Converter Weight 2lb
Media Type Supported Optical Fiber, Twisted Pair Power Consumption 2.20W
Expansion Slot Type SFP Number of SFP Slots 2 Number of SFP+ Slots 2 Number of Total Expansion Slots 2
Network (RJ-45) Yes Number of Network (RJ-45) Ports 1 Number of Ports 1
Network Technology 10/100/1000Base-T, 100/1000Base-X
Ethernet Technology Gigabit Ethernet
Depth 4.8" Form Factor Rack Mount, Rail Mount, Standalone, Wall Mount Height 1" Width 3.3"
Input Voltage 24V DC, 7.5V DC Power Source AC Adapter
Limited Warranty Lifetime
Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Package Contents SGFEB1040-230 Transceiver/Media ConverterPower Supply - Japan TAA Compliant Yes
