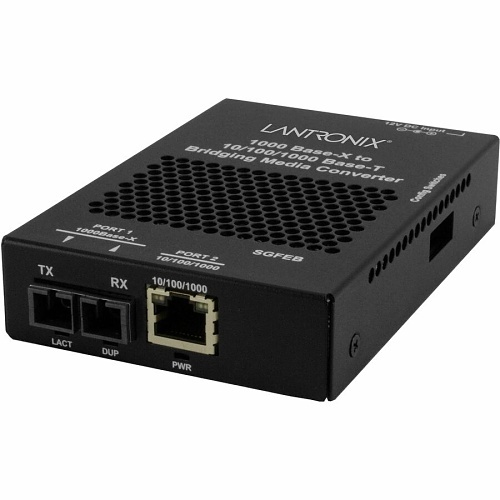

LantroniX, SGFEB1013-130-JP Media Converter, 10/100/1000B-T to 1000BASE-X, Multimode SC 850nm
SGFEB1013-130|P6-SGFEB2338
LantroniX, SGFEB1013-130-JP Media Converter, 10/100/1000B-T to 1000BASE-X, Multimode SC 850nm
SGFEB1013-130|P6-SGFEB2338
Lantronix
LantroniX, SGFEB1013-130-JP Media Converter, 10/100/1000B-T to 1000BASE-X, Multimode SC 850nm
SGFEB1013-130 | P6-SGFEB2338
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Stand-alone Gigabit Ethernet Media and Rate Converter
10/100/1000Base-T to 1000Base-SX/LX
The SGFEB Series is a stand-alone media converter that provides an interface between 10/100/1000Base-T ports and 1000Base-SX/LX ports, allowing users to integrate fiber optic cabling into 10/100/1000 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber.
Main Features
- Auto Negotiation
- Auto-MDI/MDIX
- Link Pass Through
- Far End Fault (FEF)
- Remote Fault Detect
- Provides rate conversion while also increasing transmission distances
- Supports multimode or single mode fiber
- Versions available with fixed SC or LC optics, as well as modular SFP optics
- Long haul transmission distances are supported with a variety of SFP modules
- SFP ports support dual speeds: 100/1000/SGMII
General Information
Name: LantroniX, SGFEB1013-130-JP Media Converter, 10/100/1000B-T to 1000BASE-X, Multimode SC 850nm
Category: Lantronix, Data Comm & Networking, Media Converters & Transceivers, Media Converters
UPC Code: 783384248694
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P6-SGFEB2338 Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number SGFEB1013130JP Maximum Distance 1804.46' Packaged Quantity 2 Product Model SGFEB1013-130 Product Name SGFEB1013-130 Transceiver/Media Converter Product Series SGFEB Product Type Transceiver/Media Converter Weight 2lb
Fiber Optic Mode Multimode Media Type Supported Optical Fiber, Twisted Pair Power Consumption 2.20W
Network (RJ-45) Yes Number of Network (RJ-45) Ports 1 Number of Ports 2 Number of SC Ports 1
Fiber Optic Wavelength 850 nm Network Technology 10/100/1000Base-T, 1000Base-SX
Ethernet Technology Gigabit Ethernet
Depth 4.8" Form Factor Rack Mount, Rail Mount, Standalone, Wall Mount Height 1" Width 3.3"
Input Voltage 24V DC, 7.5V DC Power Source AC Adapter
Limited Warranty Lifetime
Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Package Contents SGFEB1013-130 Transceiver/Media ConverterPower Supply - Japan
