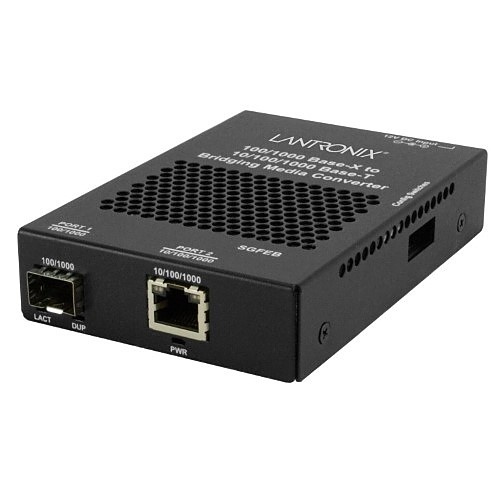

Lantronix SGFEB1040-130-EU 10/100/1000BT to 1000BX, Single SFP, EU Power Supply
SGFEB1040-130-EU|P6-SGFEB2352
Lantronix SGFEB1040-130-EU 10/100/1000BT to 1000BX, Single SFP, EU Power Supply
SGFEB1040-130-EU|P6-SGFEB2352
Lantronix
Lantronix SGFEB1040-130-EU 10/100/1000BT to 1000BX, Single SFP, EU Power Supply
SGFEB1040-130-EU | P6-SGFEB2352
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The SGFEB Series is a stand-alone media converter that provides an interface between 10/100/1000Base-T ports and 1000Base-SX/LX ports, allowing users to integrate fiber optic cabling into 10/100/1000 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber.
Main Features
- Auto Negotiation
- Auto-MDI/MDIX
- Link Pass Through
- Far End Fault (FEF)
- Remote Fault Detect
- Provides rate conversion while also increasing transmission distances
- Supports multimode or single mode fiber
- Versions available with fixed SC or LC optics, as well as modular SFP optics
- Long haul transmission distances are supported with a variety of SFP modules
- SFP ports support dual speeds, 100/1000/SGMII
General Information
Name: Lantronix SGFEB1040-130-EU 10/100/1000BT to 1000BX, Single SFP, EU Power Supply
Category: Lantronix, Data Comm & Networking, Media Converters & Transceivers, Media Converters
UPC Code: 648177044320
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P6-SGFEB2352 Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number SGFEB1040-130-EU Maximum Distance 328.08' Packaged Quantity 2 Product Model SGFEB1040-130 Product Name Stand-alone Gigabit Ethernet Media and Rate Converter10/100/1000Base-T to 1000Base-SX/LX Product Series SGFEB Product Type Transceiver/Media Converter Weight 2lb
Media Type Supported Optical Fiber Power Consumption 2.20W
Expansion Slot Type SFP
Number of Network (RJ-45) Ports 1 Number of Ports 1
Network Technology 10/100/1000Base-T, 100/1000Base-X
Ethernet Technology Gigabit Ethernet
Depth 4.8" Height 1" Width 3.3"
Power Source AC Adapter
Limited Warranty Lifetime
Environmental Certification CE Mark, CSA Certified, FCC Class A, UL Listed Environmentally Friendly Yes Package Contents Power Supply - Europe, SGFEB1040-130 Transceiver/Media Converter TAA Compliant Yes
