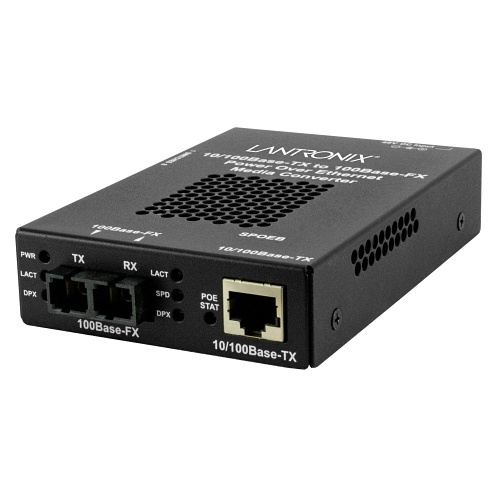

Lantronix SPOEB1013-105-EU Media Converter, 10/100BASE RJ45 PoE to 100BASE-FX Multimode SC Fiber, 2km Range
SPOEB1013-105|P6-SPOEB35EU
Lantronix SPOEB1013-105-EU Media Converter, 10/100BASE RJ45 PoE to 100BASE-FX Multimode SC Fiber, 2km Range
SPOEB1013-105|P6-SPOEB35EU
Lantronix
Lantronix SPOEB1013-105-EU Media Converter, 10/100BASE RJ45 PoE to 100BASE-FX Multimode SC Fiber, 2km Range
SPOEB1013-105 | P6-SPOEB35EU
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
CAT6 / Class E, UTP patch cords shall be constructed of 24AWG unshielded twisted pair stranded copper cable with an enhanced performance modular plug at each end. Patch cord cable shall be offered in multiple colored UTP cables for design flexibility with a clear strain relief boot on each modular plug. All patch cords shall be compatible with both T568A and T568B wiring schemes.
Main Features
- External AC power supply
- IEEE 802.3af Power-over-Ethernet Compatible
- 48 VDC PSE Output Voltage
- Signal Pair or Spare Pair Power Insertion
- PD Detection Signature
- Over-Current Protection & Under-Current Detection
- Powered Device Reset
- Switch selectable features and port settings
- Minimum Load Sensing
- Fault Protection Input
General Information
Name: Lantronix SPOEB1013-105-EU Media Converter, 10/100BASE RJ45 PoE to 100BASE-FX Multimode SC Fiber, 2km Range
Category: Lantronix, Data Comm & Networking, Media Converters & Transceivers, Media Converters
UPC Code: 648177040711
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P6-SPOEB35EU Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number SPOEB1013-105-EU Maximum Distance 1.24 Mile Packaged Quantity 1 Product Model SPOEB1013-105 Product Name SPOEB1013-105 Transceiver/Media Converter Product Series SPOEB Product Type Transceiver/Media Converter Weight 2lb
Fiber Optic Mode Multimode Media Type Supported Optical Fiber, Twisted Pair Power Consumption 20W
Network (RJ-45) Yes Number of Network (RJ-45) Ports 1 Number of PoE+ (RJ-45) Ports 1 Number of Ports 2 Number of SC Ports 1
Fiber Optic Wavelength 1300 nm Network Technology 10/100Base-TX, 100Base-FX
Ethernet Technology 10 Gigabit Ethernet
Depth 4.8" Form Factor DIN Rail Mount, Rack Mount, Shelf Mount, Standalone, Wall Mount Height 1" Package Type Bulk Width 3.3"
Power Source Power Supply
Limited Warranty Lifetime
Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Package Contents - SPOEB1013-105 Transceiver/Media Converter
- Power Supply - Europe
