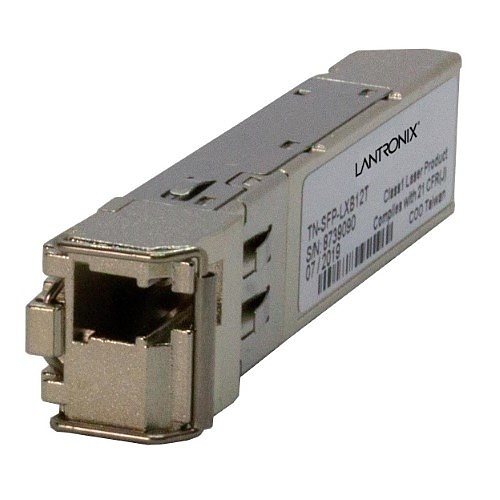

Lantronix TN-SFP-LXB82 Transceiver, SFP, 1000BASE, 80, SM LC, 1590TX/1510RX
TN-SFP-LXB82|P6-TNFPLXB82
Lantronix TN-SFP-LXB82 Transceiver, SFP, 1000BASE, 80, SM LC, 1590TX/1510RX
TN-SFP-LXB82|P6-TNFPLXB82
Lantronix
Lantronix TN-SFP-LXB82 Transceiver, SFP, 1000BASE, 80, SM LC, 1590TX/1510RX
TN-SFP-LXB82 | P6-TNFPLXB82
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
1000Base-BX 1590nm TX/1510nm RX single fiber single mode (LC) with DMI Link Budget- 24.0 dB.
Main Features
- Hot-Pluggable SFP Footprint Optical Transceiver
- Digital Diagnostic Function
- Compliant with SFP Multi-Sourcing Agreement (MSA)
General Information
Name: Lantronix TN-SFP-LXB82 Transceiver, SFP, 1000BASE, 80, SM LC, 1590TX/1510RX
Category: Lantronix, Data Comm & Networking, Media Converters & Transceivers, Media Converters
UPC Code: 648177028900
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P6-TNFPLXB82 Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number TNSFPLXB82 Maximum Distance 262467.19' Product Model TN-SFP-LXB82 Product Name TN-SFP-LXB SFP (mini-GBIC) Module Product Series TN-SFP-LXB Product Type SFP (mini-GBIC)
Fiber Optic Mode Single-mode Media Type Supported Optical Fiber Power Consumption 0.66W
Network Technology 1000Base-BX, Fiber Channel
Ethernet Technology 10 Gigabit Ethernet
Depth 2.2" Form Factor Hot-pluggable Height 0.3" Width 0.5"
Input Voltage 3.3V Plug/Connector Type LC
Limited Warranty 5-Year
Compatibility MSA Compliant Country of Origin TW Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes
