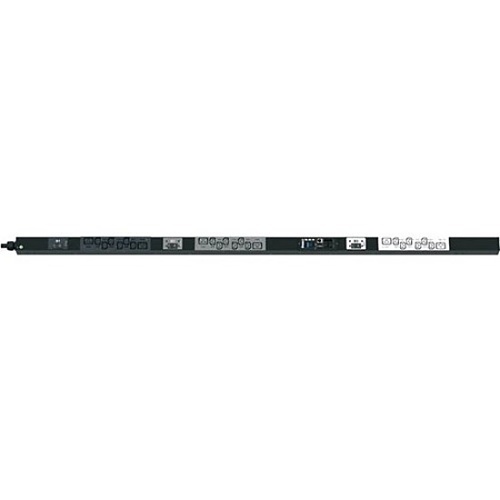

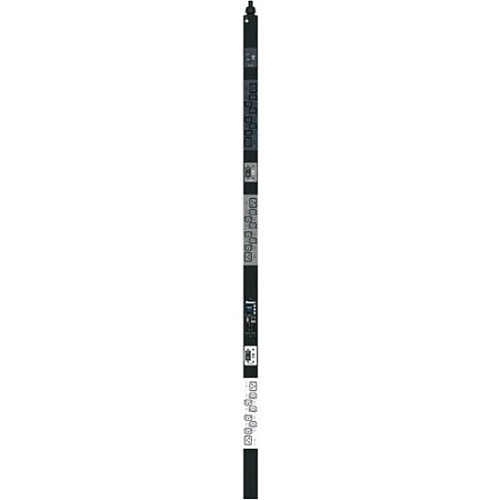

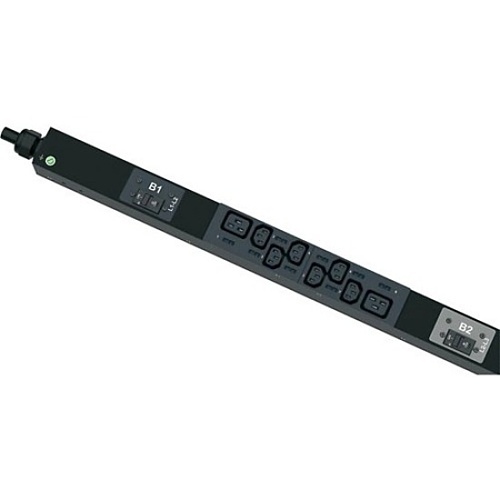

Panduit P24F02M-BL2A Vertical Power Distribution Unit, 18 C13 Outlets, 6 C19 Outlets, Monitored C19 Outlet, Monitored Output
P24F02M-BL2A|P9-4F02MBL2A
Panduit P24F02M-BL2A Vertical Power Distribution Unit, 18 C13 Outlets, 6 C19 Outlets, Monitored C19 Outlet, Monitored Output
P24F02M-BL2A|P9-4F02MBL2A
Panduit
Panduit P24F02M-BL2A Vertical Power Distribution Unit, 18 C13 Outlets, 6 C19 Outlets, Monitored C19 Outlet, Monitored Output
P24F02M-BL2A | P9-4F02MBL2A
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Panduit P24F02M-BL2A Vertical Power Distribution Unit (PDU) features 18 C13 and 6 C19 outputs, designed to efficiently distribute electric power. This monitored PDU allows for remote voltage monitoring of single or three-phase inputs, boosting power supply management. It includes IEC 60320 C13 receptacles ensuring reliable and versatile power output. Built for three-phase operation, it delivers dependable performance and enhanced productivity. Equipped with a NEMA L15-30P plug, it offers secure connectivity and optimal power delivery at 208 V AC input and output. Upgrade your power setup with this reliable PDU today!
Main Features
- A device fitted with multiple outputs for the distribution of electric power
- with monitored PDU, you can remotely monitor single-or three-phase voltage easily to ensure maximum power supply efficiency
- IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
- Three Phase phase PDU for reliable performance with maximum productivity
- NEMA L15-30P plug/connector type for better, dependable connectivity and desired power output
- 208 V AC input voltage for optimal performance with maximum usability
- 208 V AC output voltage for optimal performance with maximum feasibility
General Information
Name: Panduit P24F02M-BL2A Vertical Power Distribution Unit, 18 C13 Outlets, 6 C19 Outlets, Monitored C19 Outlet, Monitored Output
Category: Panduit, Batteries & Power Supplies, Power Management, Power Distribution Units
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-4F02MBL2A Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number P24F02M-BL2A Packaged Quantity 1 Product Line SmartZone Product Name SmartZone G5 Intelligent 24-Outlets PDU Product Series MPO Product Type PDU Sector Data Comm & Networking
Output Voltage 208V AC PDU Type Monitored Phase Three Phase Receptacle Detail 18 x IEC 60320 C13, 6 x IEC 60320 C19 Receptacle Type IEC 60320 C13, IEC 60320 C19
Network (RJ-45) Yes
Depth 2.1" Mounting Orientation Vertical Rack Height 0U Width 2"
Input Current 30A Input Voltage 208V AC Plug/Connector Type NEMA L15-30P
Length 68.9" Mount Type Rack Mount
Limited Warranty 3-Year
Environmentally Friendly Yes
